Cleanroom Air Distribution Plenums
Cleanroom Air Distribution Plenums: Ensuring Uniform Air Delivery
In the architecture of a high-performance cleanroom, the space between the AHU and the final filter is where air stability is won or lost. Metrolabs provides high-accuracy Cleanroom Air Distribution Plenums, engineered to equalize pressure and distribute air uniformly across the ceiling grid.
Our plenums act as a pressurized reservoir, ensuring that every HEPA filter receives a consistent, laminar-like supply of air. This is essential for maintaining strict ISO classifications and preventing turbulence in pharmaceutical and research zones.
The Engineering Purpose of a Plenum System
Standard ducting often delivers air with high velocity and uneven force. A Metrolabs Plenum transforms this turbulent energy into a stable “static pressure” zone.

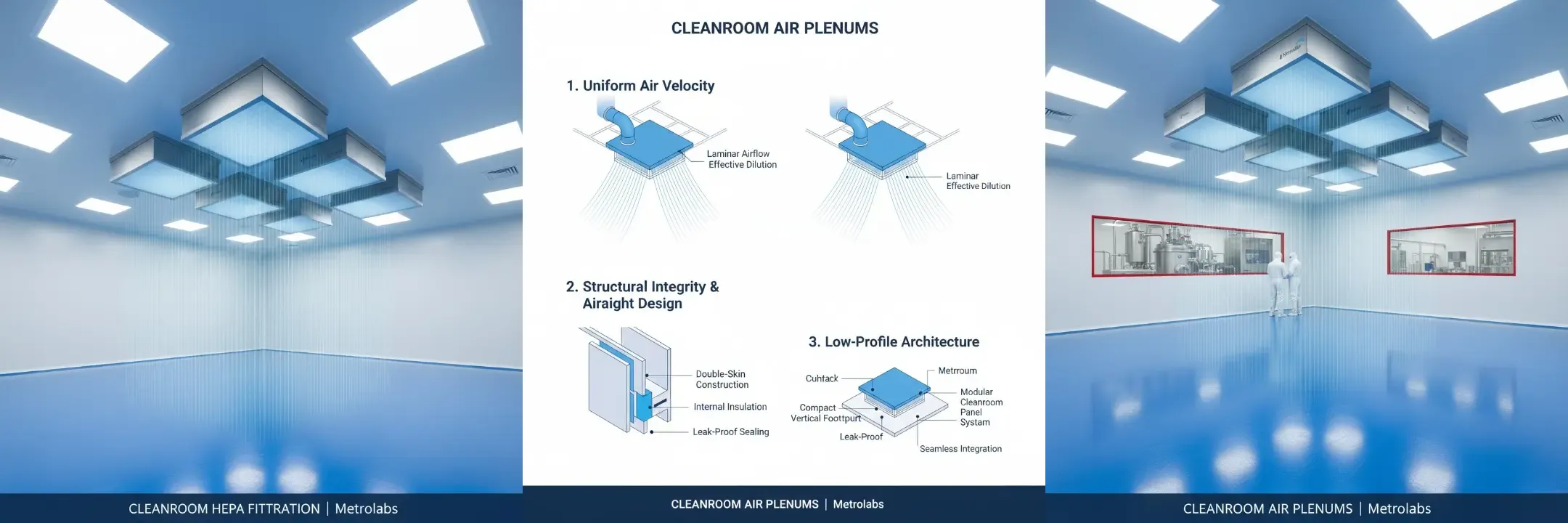

Uniform Air Velocity
By creating a pressurized "buffer" above the cleanroom, our plenums ensure that air exits the ceiling filters at a consistent velocity. This is critical for: Laminar Airflow: Preventing "dead spots" where contaminants could linger. Effective Dilution: Ensuring that filtered air reaches every corner of the sterile suite simultaneously.
Low-Profile Architecture
Space is often at a premium in laboratory ceilings. Our plenums are custom-built to provide maximum airflow volume within a compact vertical footprint, integrating seamlessly with our Modular Cleanroom Panels.
Structural Integrity & Airtight Design
A plenum must be perfectly sealed to prevent unconditioned air from bypassing the filtration system. Double-Skin Construction: Typically built from high-grade GI or Stainless Steel with internal insulation to prevent thermal loss. Leak-Proof Sealing: Every joint is treated with medical-grade, non-outgassing sealants to maintain pressure integrity.
Technical Specifications & Features
| Feature | Metrolabs Plenum Standard | Impact on Operations |
| Material | SS 304 / Powder-coated GI | Resists corrosion and microbial growth. |
| Insulation | Closed-cell Nitrile or XPE | Prevents condensation without internal fibers. |
| Joining System | Airtight Flanges / TDF | Guarantees zero bypass leakage. |
| Internal Surface | Smooth & Degreased | Eliminates particulate traps and oily residues. |
Key Components of the Distribution System
Inlet Collars: Strategically placed to accept air from the HVAC Ducting with minimal turbulence.
Internal Baffles: Specifically engineered plates that guide air within the plenum to ensure equal pressure across all filter outlets.
Filter Interfaces: Designed for a flush-fit with terminal HEPA modules, supporting either gel-seal or gasket-seal configurations.
Test Ports: Integrated ports allow for easy measurement of static pressure and aerosol concentrations without breaching the cleanroom ceiling.
Why Choose Metrolabs Plenums?
At Metrolabs, we design for long-term performance. Our plenums are more than just “boxes”—they are precision-tuned instruments that support your facility’s environmental health.
Custom-Built Geometry: We tailor the plenum shape to fit your specific ceiling height and equipment layout.
BMS Ready: We can integrate pressure sensors that feed directly into your Building Management System for real-time monitoring of airflow stability.
Compliance Guaranteed: Our systems are designed to support ISO 14644-1 requirements for unidirectional airflow.
Engineering Tip: For high-containment BSL-3 labs, we recommend our Stainless Steel (SS 316) Plenums. These provide the ultimate chemical resistance during intensive room-wide sterilization cycles and ensure the structural shell remains airtight for years to come.
