Cleanroom Return Air Risers
Cleanroom Return Air Risers: Managing the Flow of Contaminants
In a sterile environment, how air leaves the room is just as important as how it enters. Metrolabs provides high-accuracy Return Air Risers, engineered to capture and extract air at the floor level. This ensures a consistent downward (unidirectional) airflow, which is the primary defense against airborne particulates and cross-contamination.
Our risers are custom-built to integrate perfectly with our Modular Cleanroom Panels, providing a high-performance solution that supports your facility’s ISO and GMP compliance.
The Science of “Bottom-Side” Air Extraction
Airborne particles are naturally influenced by gravity. By placing extraction points near the floor, Metrolabs Return Air Risers “pull” contaminants away from critical work surfaces and personnel breathing zones.

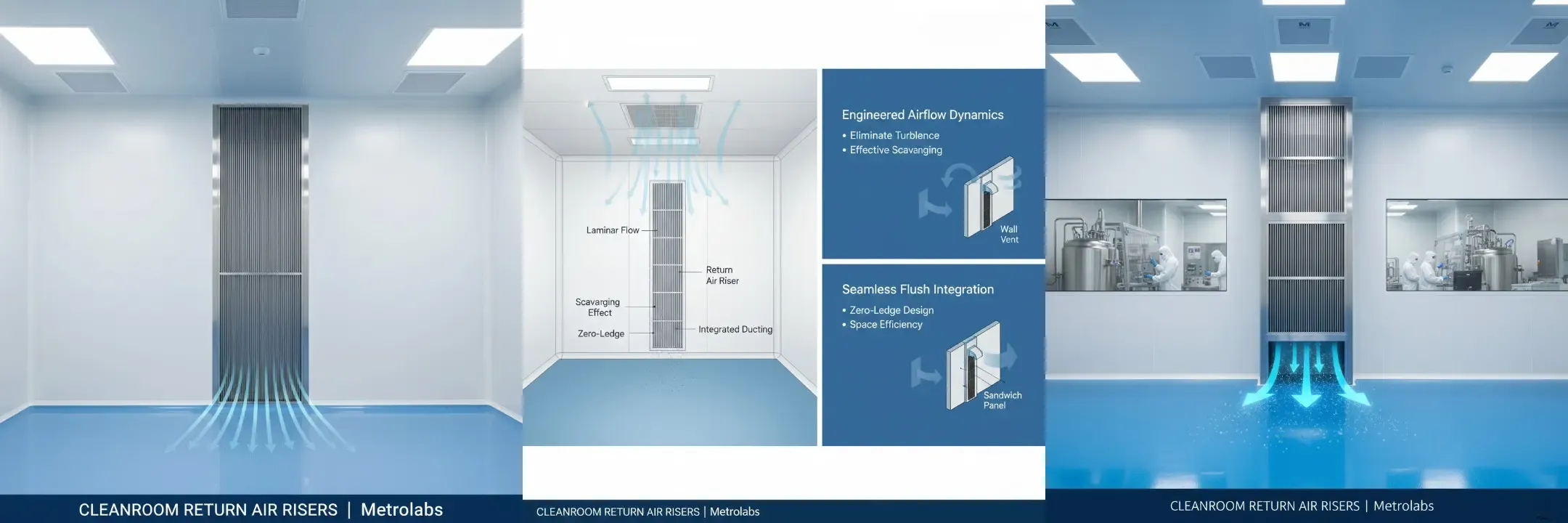

Engineered Airflow Dynamics
Standard wall vents can create "dead zones" where air stagnates. Our risers are designed to: Eliminate Turbulence: Creating a laminar-like flow from the ceiling HEPA filters down to the floor. Effective Scavenging: Ensuring that heavier particulates and gases are removed before they can settle on sterile equipment or products.
Seamless Flush Integration
A Metrolabs riser is not an "add-on" but a structural component of the wall itself. Zero-Ledge Design: The riser is built into the thickness of the Sandwich Panels, maintaining a totally flush surface within the cleanroom. Space Efficiency: By integrating the ducting into the wall system, we maximize the usable floor space of your laboratory or production suite.
Technical Features & Materials
| Feature | Metrolabs Specification | Impact on Operations |
| Material | SS 304/316 or Powder-coated GI | High chemical resistance and easy to sanitize. |
| Grille Design | Perforated or Louvered (Removable) | Allows for easy cleaning of the internal duct. |
| Internal Finish | Smooth, Non-porous surfaces | Prevents dust accumulation inside the riser. |
| Control | Integrated Volume Control Dampers | Allows for precise balancing of room pressure. |
Key Components of the Riser System
Removable Grilles: Our risers feature heavy-duty, flush-mounted grilles that can be easily removed for sterilization and internal inspection.
Volume Control Dampers (VCD): Located behind the grille, these allow facility engineers to adjust the extraction rate, which is critical for maintaining specific pressure differentials between rooms.
Pre-filter Integration: Optional G4-grade pre-filters can be installed within the riser to capture larger dust particles before they enter the main HVAC Ducting, protecting the life of your AHU.
Applications in High-Stakes Sectors
Metrolabs Return Air Risers are essential for any facility requiring Grade A to Grade D air quality:
Pharmaceutical Filling: Removing drug dust or vapors immediately at the source.
Microbiology Labs: Ensuring that any potential bio-aerosols are swept downward and filtered.
Healthcare Operating Theaters: Maintaining an ultra-clean “curtain” of air around the surgical site.
Electronics Assembly: Preventing the upward migration of micro-particles that could damage sensitive components.
The Metrolabs Advantage
We focus on long-term performance and ease of maintenance. Our risers are designed with a “Clean-in-Place” mindset, featuring smooth internal transitions and chemically resistant finishes that withstand frequent exposure to sterilizing agents like VHP.
Expert Insight: For facilities with high humidity or frequent wash-downs, we recommend our Stainless Steel (SS 316) Risers. These provide the ultimate protection against corrosion and ensure the structural integrity of your air-return path for decades.
