±0.5% Accuracy · 4-20mA / Modbus · VHP · BMS Integrated

Cleanroom Differential Pressure Sensors — Pressure Is the Invisible Shield of Sterility

The pressure differential between adjacent cleanroom zones is the primary engineering control preventing contamination from flowing in the wrong direction. A door left open, an AHU fan fault, a duct seal failure — any of these events can collapse the pressure cascade and allow contaminated lower-grade air to flow into a higher-grade zone within seconds. Metrolabs differential pressure sensors continuously monitor the pressure at every zone boundary, provide instant colour-coded status to personnel, alarm the BMS on any breach, and trigger automatic AHU VFD correction — making them the real-time guardian of your cleanroom’s pressure cascade.

±0.5% Accuracy −50 to +100 Pa 4-20mA / RS485 Modbus RTU/TCP Wall-Flush VHP Compatible
ΔP Sensor Quick-Reference
Measurement Range−50 to +50 Pa / 0–100 Pa
Accuracy±0.5% of full scale
DisplayWall-flush digital LED / LCD
AlarmVisual LED (Green/Red) + audible
Output4–20mA / RS485 Modbus RTU/TCP
Pressure PortsSS 304 — corrosion-resistant
🌊
±0.5%
Accuracy FS
21 CFR
Part 11 Log
📍
Pan-India
Install
🌊
±0.5% Full Scale Accuracy — Low Zero-Drift
💢
Colour LED Alarm — Green / Red Status
📈
4–20mA / Modbus RTU/TCP — BMS Ready
🧹
Wall-Flush Zero-Ledge Installation
📋
Pre-Calibrated — Certificate Supplied
VHP Compatible — 21 CFR Part 11 Data Log
GMP Pressure Cascade — ΔP Sensor Network & Alarm Logic
GRADE A +20 Pa ISO Class 5 GRADE B +15 Pa ISO Class 7 GRADE C +10 Pa ISO Class 8 CORRIDOR 0 Pa ref ΔP 5 Pa ΔP 5 Pa ΔP 10 Pa BMS — 4–20mA / Modbus — Continuous Logging ALARM SCENARIO: Grade A door left open — DP falls from 5 Pa to 1 Pa ΔP 1 Pa ALARM ⇩ Below 3 Pa ⚠ BMS Alert AHU VFD increase Visual + audible alarm triggered Log recorded
🌊 Cascade Monitoring
Sensors at every zone boundary measure the differential from clean to less-clean zones continuously.
💢 LED Status Display
Green = within setpoint. Amber = approaching threshold. Red + audible = alarm condition.
📈 BMS Integration
4–20mA or Modbus feeds real-time DP data to BMS for trend logging, alarm history, and VFD control.
⚙️ VFD Auto-Correction
DP transmitter triggers AHU VFD speed increase on pressure drop — restoring differential in seconds.
Pressure — The Invisible Shield

Why Differential Pressure Monitoring Is the Most Critical Cleanroom Safety System

Temperature and humidity excursions can typically be corrected before they cause product damage. A pressure cascade failure can cause contamination within seconds — and without continuous DP monitoring, neither the HVAC system nor personnel will know it has happened until the next manual inspection.

🌊

Pressure Is the First Line of Defence Against Cross-Contamination

The pressure cascade — Grade A at highest pressure flowing down through B, C, D to corridor — ensures that air always flows from the most critical zone to the least critical zone. At every door opening and every minute of operation, airborne particles, pathogens, and allergens are physically prevented from flowing in the wrong direction as long as the differential pressure is maintained above the specified minimum (typically 10–15 Pa per grade step). A DP sensor confirms this invisible shield is intact — 24 hours a day, every day, without human intervention.

🚫

Instant Detection of Cascade Failure Events

A pressure cascade failure event — door left open, AHU fan trip, duct seal breach, filter loading past the VFD correction limit — can be detected by the DP sensor within milliseconds of the differential dropping below the alarm setpoint. This instantaneous response allows the BMS to immediately log the event, alert personnel, and command the AHU VFD to compensate — all before a human could detect or respond to the problem manually. Every cascade failure event is time-stamped and recorded for the GMP environmental monitoring review.

📋

21 CFR Part 11 Environmental Monitoring Records

WHO GMP, EU Annex 1, and US-FDA 21 CFR Part 11 all require continuous, documented evidence that the cleanroom pressure cascade was maintained throughout every production batch. The BMS data log from the DP transmitters — timestamped, tamper-evident, archived — is this evidence. Without DP transmitters feeding the BMS, the only alternative is manual pressure gauge reading and paper recording — which cannot provide the continuous monitoring that regulations require.

Personnel Safety in Negative Pressure Containment

For BSL-3/4 facilities and pharmaceutical containment suites, the DP sensor performs a life-safety function — confirming that the negative pressure inside the containment zone is greater than the pressure outside, so that any unintended air leakage flows inward (into the containment) rather than outward (into the personnel area). If the negative pressure is lost, the DP sensor alarm triggers immediate evacuate and lockdown protocols — preventing personnel exposure to hazardous pathogens or potent compounds.

Sensor Types & Configurations

Six ΔP Sensor Configurations for Every Cleanroom Monitoring Application

Metrolabs supplies six differential pressure sensor configurations matched to the monitoring function, installation environment, and BMS integration requirement:

💢

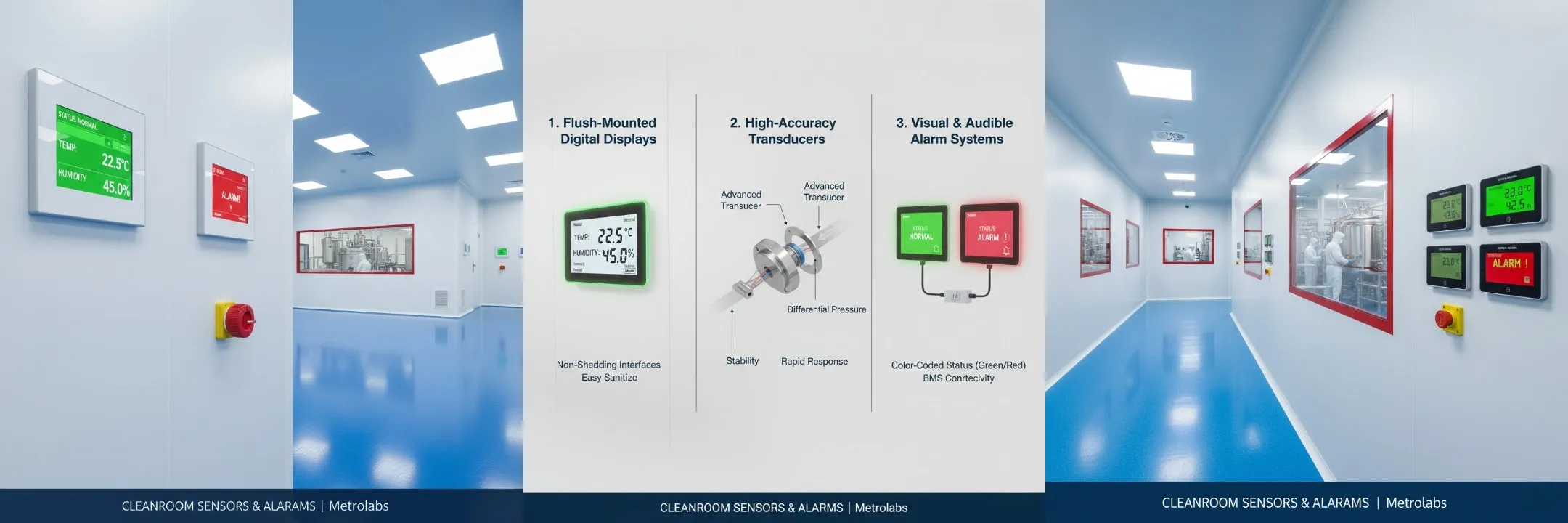

Wall-Flush Digital Display — Room Status Indicator

The primary personnel-facing sensor — a flush-mounted digital display unit installed at eye level on the cleanroom entry wall, showing the live pressure differential between the room and the adjacent zone. The display housing is designed to sit flush with the modular cleanroom panel surface — zero protrusion, zero ledge, zero particle trap. The display face is smooth glass or membrane — non-shedding, wipeable, and resistant to all standard pharmaceutical disinfectants and VHP. LED backlight colour provides instant status: green indicates within the normal operating range, amber indicates approaching the alarm threshold, and red (with audible alarm) indicates the pressure has fallen below the minimum setpoint. Personnel verify the display colour before entering the cleanroom zone — a simple, reliable first-line safety check integrated into the entry SOP.

Flush Panel MountGlass/Membrane FaceGreen/Amber/Red LEDVHP Compatible
📈

4–20mA Analog Transmitter — BMS Continuous Logging

The standard BMS integration sensor for pharmaceutical cleanrooms — a pressure transducer with 4–20mA current loop output proportional to the measured differential pressure. The 4–20mA signal is wired directly to a BMS analog input module, which samples the signal at configurable intervals (typically every 1–60 seconds) and converts it to a pressure value for trending, alarming, and data logging. The BMS maintains a continuous time-stamped record of the room pressure differential — creating the 21 CFR Part 11-compliant environmental monitoring record that demonstrates continuous pressure cascade maintenance during production. The 4–20mA standard is immune to electrical noise over long cable runs — critical for sensors installed in plant rooms or clean corridors feeding a central BMS rack in a remote equipment room.

4–20mA OutputBMS Analog Input21 CFR Part 11Noise Immune
🔌

RS485 Modbus RTU / TCP — Digital Network Sensor

For modern BMS and SCADA systems using digital communication protocols, the RS485 Modbus RTU (serial) or Modbus TCP (Ethernet) sensor provides direct digital DP values to the building network without analog signal conversion. Multiple Modbus sensors can be daisy-chained on a single RS485 two-wire bus (up to 32 devices at 1.2km), dramatically reducing field wiring costs compared to individual 4–20mA runs from each sensor to the BMS. Modbus TCP allows sensors to connect directly to the facility Ethernet network for integration with modern IoT-capable BMS platforms. Each sensor has a configurable Modbus node address and register map for pressure value, alarm status, and sensor status — readable by any Modbus-compatible BMS, SCADA, or data acquisition system.

Modbus RTU/TCPRS485 Network32 Devices/BusIoT BMS Ready
⚙️

Magnehelic Differential Pressure Gauge — Local Mechanical

A mechanical differential pressure gauge using a diaphragm-spring mechanism to indicate pressure differential on a colour-coded analogue scale — no power required, no electronics, no calibration drift from power fluctuations. Magnehelic gauges are mounted in AHU access panels, filter access doors, and plant room walls to provide maintenance technicians with an immediate, reliable local pressure reading during filter changes, duct inspections, and routine maintenance. The analogue pointer position reads directly against calibrated scale markings in Pa — no display to fail, no battery to replace. Standard for filter DP monitoring (G4, F9, and H14 stages) where the maintenance team needs a direct, always-on, equipment-side pressure reading independent of BMS power or communication. Not suitable for BMS integration or data logging — used in combination with electronic transmitters for facilities requiring both local indication and BMS continuity.

No Power RequiredDiaphragm MechanismFilter DP MonitoringAHU / Plant Room
📅

Duct-Mount Pressure Transmitter — AHU / Plenum Monitoring

Sensor configurations for monitoring static pressure within HVAC ductwork, AHU casings, and distribution plenums — measuring duct static pressure relative to atmosphere for VFD fan control. The duct-mount transmitter is the primary sensor for AHU VFD closed-loop control: the BMS reads the duct or plenum static pressure and commands the AHU VFD to maintain the design static pressure setpoint as filters progressively load. This ensures constant HEPA face velocity throughout the filter service life without manual re-balancing. Duct-mount transmitters use SS 304 pitot tube pressure sensing elements inserted through the duct wall to the duct centreline — providing true duct static pressure measurement unaffected by air velocity profile variations across the duct cross-section.

SS 304 Pitot TubeVFD Control LoopPlenum PressureFilter DP Compensation
🚫

Negative Pressure Alarm System — BSL / Containment

A dedicated differential pressure monitoring and alarm system for negative pressure containment rooms — BSL-3/4 laboratories, isolators, pharmaceutical containment suites, and hospital isolation wards. The negative pressure sensor monitors the DP between the containment room (lower pressure) and the adjacent area (higher pressure), confirming inward airflow direction at all times. If the negative pressure falls below the setpoint (e.g., −12.5 Pa), the alarm system triggers immediate visual alarm (flashing red LED at the room entry), audible alarm (pulsing horn), and BMS alert — initiating the facility containment breach SOP. The alarm delay logic can be configured to distinguish between brief pressure fluctuations during door operations (normal — 5–15 seconds) and genuine containment breaches requiring SOP response. 21 CFR Part 11-compliant log of all alarm events with timestamp, duration, and recovery confirmation.

Negative PressureBSL-3/4 / IsolationFlashing Red + HornAlarm Delay Logic
Technical Specifications

Metrolabs ΔP Sensor — Technical Standards & Performance

Every Metrolabs differential pressure sensor is factory-calibrated, tested, and supplied with a calibration certificate to the following performance parameters:

FeatureMetrolabs StandardCleanroom Benefit
Measurement Range−50 to +50 Pa / 0–100 PaCovers all cleanroom cascade differentials (10–20 Pa typical)
Accuracy✓ GMP Spec±0.5% of full scaleHigh-accuracy DP for audit-compliant environmental records
Zero DriftMinimal — low-drift transducerLong-term stability — infrequent recalibration needed
Response Time<1 secondInstantaneous alarm on door-open pressure drop
DisplayDigital LED/LCD — wall-flushZero-ledge installation — continuous GMP wall surface
Alarm OutputVisual LED + audible (configurable)Immediate personnel alert at zone entry
Analog Output4–20mA (2-wire loop)BMS continuous logging — 21 CFR Part 11 data
Digital OutputRS485 Modbus RTU / TCPNetwork integration — multi-drop daisy-chain
Full Technical Specification
Measurement Range−50–+50 Pa / 0–100 Pa
Accuracy±0.5% FS (factory calibrated)
Resolution0.1 Pa display resolution
Response Time<1 second to 90% of step
Display TypeDigital LED / LCD — wall-flush
BacklightGreen / Amber / Red (configurable)
Alarm OutputVisual + configurable audible
Analog Output4–20mA (2-wire, isolated)
Digital OutputRS485 Modbus RTU / TCP
Pressure PortsSS 304 — barbed / M5 thread
Display FaceSmooth glass / membrane — VHP safe
CalibrationFactory cert supplied — NABL traceable
Standards & Compliance
WHO GMPEU Annex 1ISO 14644-221 CFR Pt 11NABLVHP Safe
Alarm Logic & BMS Integration

Smart Alarm Logic — Eliminating Nuisance Alarms While Catching Every Genuine Breach

The greatest challenge in cleanroom DP monitoring is distinguishing between normal, brief pressure fluctuations during door operations and genuine pressure cascade failures requiring SOP response. Metrolabs configures alarm logic that addresses this challenge:

Configurable Alarm Delay — Suppressing Door-Operation Nuisance Alarms

When a cleanroom door opens, the pressure differential will momentarily drop — this is normal and expected, typically resolved within 5–15 seconds as the AHU VFD compensates. If the alarm triggers every time a door opens, personnel begin to ignore it — the most dangerous possible outcome. Metrolabs programmes an alarm delay (typically 10–30 seconds, configurable per zone) that only triggers the alarm if the pressure remains below the minimum setpoint for longer than the delay period — distinguishing a door-open transient (brief, self-correcting) from a genuine cascade failure (persistent, requiring action).

10–30 sec delayConfigurable per zoneDoor-operation safe
💢

Three-Level Alarm — Normal / Warning / Alarm

Two independently configurable setpoints allow a three-level response: the Warning setpoint (e.g., DP below 8 Pa — approaching the limit) triggers amber LED and BMS notification but no audible alarm — alerting the facility manager to investigate before a full failure. The Alarm setpoint (e.g., DP below 5 Pa — actual cascade compromise) triggers red LED, audible alarm, and BMS alarm record requiring documented SOP response and deviation report. This two-setpoint logic allows early detection and correction of developing problems before they become regulatory deviations.

Dual setpointsWarning + AlarmBMS notification
📋

Alarm History Log — 21 CFR Part 11 Compliant

The BMS records every alarm event with: timestamp of alarm onset, DP value at onset, duration of alarm, timestamp of alarm clearance, DP value at recovery, and operator ID of the acknowledging personnel. This alarm history log is the primary evidence used during GMP batch record review to confirm that no unacknowledged pressure breach occurred during production. All records are stored in a tamper-evident, user-access-controlled format meeting 21 CFR Part 11 electronic record requirements.

21 CFR Part 11Timestamp recordOperator ID
⚙️

AHU VFD Auto-Correction — Restoring Cascade Without Manual Intervention

The DP transmitter signal from each room feeds the AHU BMS control loop — when the DP drops toward the warning threshold, the BMS automatically increases the AHU VFD fan speed to supply more air to the affected zone, restoring the differential before the alarm threshold is reached. This closed-loop pressure control eliminates most nuisance alarms entirely by correcting normal pressure fluctuations faster than humans can detect them — the alarm then only activates for genuine failures where VFD correction is insufficient (e.g., door held open, AHU fault).

VFD closed loopAuto-correctionReduces alarms
GMP Cascade — Live Zone Status Display
Grade A
+20 Pa
ISO 5 · Filling Zone · H14 Laminar
✓ NORMAL
Grade B
+15 Pa
ISO 7 · Aseptic Background
✓ NORMAL
Grade C
+8 Pa
ISO 8 · Processing · Below 10 Pa min
⚠ WARNING
Grade D
+5 Pa
Controlled · Support Area
✓ NORMAL
Airlock 1
+2 Pa
Gowning · Door held open
⚠ ALARM
Above: BMS dashboard showing live DP cascade status across 5 zones. Grade C warning (8 Pa vs 10 Pa minimum) and Airlock 1 alarm (door held open — 2 Pa) are immediately visible. BMS has already increased AHU VFD to +8% and logged both events with timestamps. Alarm delay timer running on Airlock 1 — if door closes within 30 seconds, alarm clears without SOP escalation.
Applications

ΔP Sensors Across Every Regulated Cleanroom Sector

Differential pressure monitoring is mandatory wherever a cleanroom pressure cascade must be maintained and documented:

💊

Pharmaceutical GMP

4–20mA transmitters at every zone boundary — continuous BMS logging providing the 21 CFR Part 11 environmental monitoring record for every production batch review.

🎁

Aseptic & Sterile Suites

Wall-flush digital displays at Grade A and B entry points — personnel verify green status before entering. BMS alarms on cascade breach with VFD auto-correction.

BSL-2 & BSL-3 Containment

Negative pressure alarm sensors — confirmatory that containment rooms remain at lower pressure than adjacent areas. Flashing alarm + horn on negative pressure loss.

🏥

Hospital Isolation & OT

Negative pressure sensors for isolation ward rooms (−12.5 Pa minimum). Positive pressure sensors for OT suites. Clinical alarm integration with nurses’ station alert.

🧪

Microbiology & BSL Labs

Airlock integrity monitoring during personnel and material transit — validating that both airlock doors were never simultaneously open and that pressure was maintained throughout transit.

🧮

ATMP & Gene Therapy

Multi-zone Modbus network of DP sensors across ATMP GMP suites — all data federated to BMS for real-time cascade monitoring and 21 CFR Part 11 batch environmental records.

🍽️

Food & Beverage

Positive pressure monitoring in FSSAI and HACCP high-care cleanrooms — confirming air flows outward from the food processing zone preventing external contamination ingress.

🔬

NABL Research Labs

Magnehelic and digital DP monitoring for NABL-accredited controlled environments — periodic readings documented for ISO/IEC 17025 environmental monitoring submissions.

The Metrolabs Advantage

Pre-Calibrated, Validated, Integrated — Not Just Installed

Metrolabs delivers DP monitoring as a validated environmental monitoring system — not as individual sensors bolted to walls. Every sensor arrives pre-calibrated, is installed with NABL-traceable calibration certificates, integrated into the BMS with documented alarm logic, and commissioned with a validated alarm response test:

📋

Factory Pre-Calibrated — NABL-Traceable Certificate

Every Metrolabs DP sensor is factory-calibrated against a NABL-accredited reference standard and supplied with a calibration certificate showing the measured accuracy at multiple test points across the range. The certificate includes the calibration date, reference standard traceability chain, and next recommended recalibration date — satisfying the GMP requirement for documented instrument calibration before use.

SS 304 Pressure Ports — Non-Corroding, Non-Clogging

Standard DP sensors use plastic or brass pressure ports that corrode in pharmaceutical disinfectant environments and clog with dust or condensation over time — causing false low-pressure readings that can mask genuine alarm conditions. Metrolabs specifies SS 304 pressure ports as standard — resisting all pharmaceutical cleaning agents, VHP, and disinfectant fogging without surface degradation. The port geometry is designed for self-draining to prevent condensate accumulation.

Custom Alarm Delay Logic — Per-Zone Configuration

Metrolabs engineers programme each zone’s alarm delay, warning setpoint, and alarm setpoint based on the zone’s normal door operation frequency, the AHU VFD response speed, and the regulatory requirements — eliminating nuisance alarms in high-traffic zones while maintaining sensitive alarm logic in critical Grade A/B areas where even brief pressure loss must be recorded.

🔧

Flush Installation — Cleanroom Surface Integrity

Every wall-mounted DP sensor display is installed flush with the modular cleanroom panel surface — the sensor housing is recessed into the panel thickness so that only the display face and alarm LED are visible on the room side, presenting an unbroken, zero-ledge wall surface that maintains the GMP hygienic wall standard from floor to ceiling.

💡 Technical Insight — Sensor Placement for SOPs and Reliability
Metrolabs recommends placing differential pressure sensors at eye level near the entry door of each cleanroom zone — so that personnel can verify the green LED status before entering the zone as part of the entry SOP, without needing to consult the BMS. This makes the pressure check a natural part of the entry routine rather than an additional step. For zones with multiple entry points, a sensor at each entry point provides both the personnel safety check and redundant pressure monitoring — a single sensor failure does not leave the zone unmonitored. All sensors feed the BMS independently, so a display failure does not interrupt the continuous data logging function.

ΔP Sensor Type Comparison

Feature Magnehelic Digital Transmitter
📈 BMS continuous log
✕ Manual read only
✓ 4–20mA / Modbus
💢 Visual alarm LED
✕ No alarm
✓ Green/Red LED
⏱ Alarm delay logic
✕ No logic
✓ Configurable
📋 21 CFR Part 11 log
✕ Paper only
✓ Electronic record
⚡ Power required
✓ None (mechanical)
24V DC / 230V AC
⚙️ VFD auto-control
✕ Not possible
✓ Closed-loop control
☢ Negative pressure
✓ Readable
✓ + Alarm logic
Installation & Commissioning

From Sensor Position Planning to Validated Alarm Response

Metrolabs manages the complete DP monitoring system installation — from zone sensor position planning through BMS integration, alarm logic programming, and validated alarm response testing:

01
📐

Sensor Position Planning

Sensor positions confirmed at each zone boundary — eye level at zone entry, facing towards room for LED visibility. Sensor type (display, transmitter, magnehelic) specified per position. Wall apertures planned in panel system before construction.

02
🧱

Flush Installation & Wiring

Sensor housings recessed flush in panel apertures. SS 304 pressure port tubes routed to sense points on both sides of the zone boundary. 4–20mA or RS485 signal cable routed to BMS panel. Cable segregated from power wiring to prevent noise.

03
⚙️

BMS Integration & Alarm Logic

BMS analog/digital inputs configured. Warning and alarm setpoints programmed per zone. Alarm delay timers set. VFD control loop connected. Modbus register addresses assigned. BMS trend logging confirmed active for all DP channels.

04

Calibration Verification & IQ Issue

Installed sensor output verified against factory calibration certificate. Alarm setpoints tested by controlled pressure reduction. VFD response confirmed. Alarm log record generated and verified. All calibration certs and alarm test records in HVAC IQ documentation.

Regulatory Standards

ΔP Monitoring Required by Every Major Cleanroom Regulatory Framework

💊

WHO & EU GMP

WHO GMP and EU Annex 1 require continuous monitoring of pressure differentials between all GMP-classified zones, with documented alarm limits, alarm history logging, and SOP response procedures for pressure breaches. The BMS DP transmitter log is the primary evidence for these requirements during regulatory inspection.

WHO GMP · EU Annex 1
🏭

ISO 14644-2

ISO 14644-2 (cleanroom monitoring) specifies differential pressure as a primary parameter for ongoing cleanroom performance monitoring — requiring defined monitoring frequency, alarm limits, and documented response to excursions. Metrolabs BMS DP logging satisfies the continuous monitoring frequency requirement directly.

ISO 14644-2
📋

21 CFR Part 11

US-FDA 21 CFR Part 11 requires that electronic environmental monitoring records — including pressure differential data — are timestamped, tamper-evident, accessible for audit, and protected from unauthorised modification. Metrolabs BMS pressure data logs are configured to meet all Part 11 electronic record requirements from Day 1 of operation.

21 CFR Part 11

BSL & NABL

CDC/WHO BSL-3 containment guidelines mandate continuous negative pressure monitoring with alarmed indication of pressure loss. NABL ISO/IEC 17025 assessors require documented pressure differential monitoring records for controlled environment testing laboratories as part of the facility environmental monitoring programme.

BSL · NABL · GLP
Specify Your ΔP Monitoring System

Ready to Commission Validated Pressure Cascade Monitoring?

Contact Metrolabs for a free consultation. Our instrumentation specialists will assess your cleanroom zone layout, pressure cascade design, BMS platform, and regulatory requirements — then specify, supply, install, integrate, and commission a complete DP monitoring system with calibration certificates and validated alarm response tests at handover.

🌊
±0.5% Accuracy — Pre-Calibrated Certificate
NABL-traceable factory calibration — ready for GMP IQ documentation
💢
Green / Amber / Red LED — Instant Zone Status
Personnel verify cascade before zone entry — integrated into entry SOP
📈
4–20mA / Modbus — BMS Continuous Logging
21 CFR Part 11 electronic records — VFD auto-correction loop
Custom Alarm Delay — No Nuisance Alarms
Per-zone delay configuration — three-level warning / alarm logic
