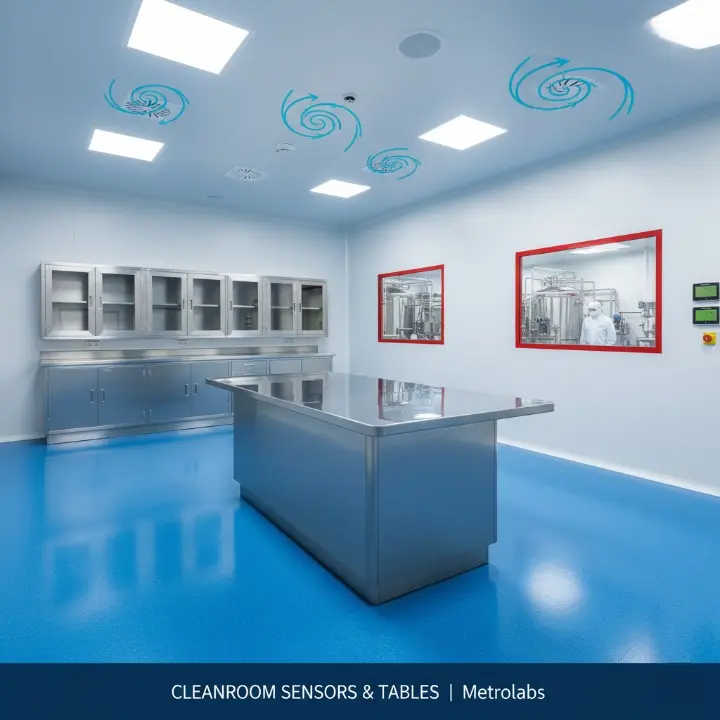

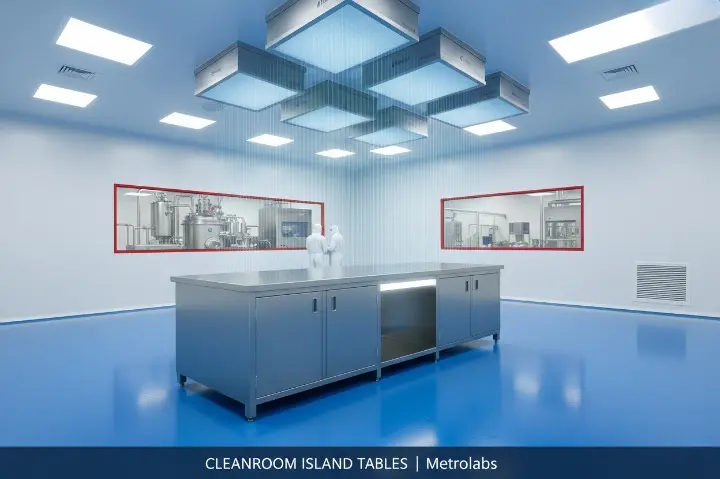

Island Cleanroom Work Tables
When multiple researchers need simultaneous access, when large analytical instruments require all-round reach, or when the cleanroom layout demands a central work hub — the island workstation is the answer. Metrolabs island cleanroom work tables are freestanding, 360°-accessible, precision-fabricated SS 304/316L platforms that place the work zone in the centre of the clean zone where every operator has equal, unrestricted access.
Precision-Fabricated Central Workstations for GMP & ISO Cleanrooms
Every Metrolabs island cleanroom work table is custom-fabricated as a freestanding central workstation — Zero-Ledge design, SS 304 or SS 316L, with perforated or solid worksurface matched to your ISO class and GMP grade:
Why an Island Table Is the Right Workstation for Central Cleanroom Zones
The island workstation is not simply a table placed in the middle of a room — it is a purpose-designed central work hub whose freestanding configuration, 360° accessibility, and absence of wall-side constraints make it the correct choice for specific cleanroom scenarios.
360° Multi-Researcher Access — No Access Compromises
A wall-side table restricts access to one or at most two sides — operators must reach across each other or move around the table to access different positions. The island table provides equal, unrestricted access from all four sides simultaneously — up to four researchers can work at the same table without any one of them impeding the others. This makes the island table the standard configuration for weighing and dispensing suites, cell counting and cytometry workstations, quality control benches, and any operation where multiple personnel must work simultaneously on the same process step.
Large Instrument Housing — All-Round Machine Access
Analytical instruments — HPLC systems, mass spectrometers, fermenters, bioreactors, freeze dryers, lyophilisers — often require operator access from two or more sides during operation, maintenance, and sampling. A wall-side table forces all service access to the front face only — rear panel access requires moving the instrument away from the wall. The island table allows instrument placement in the room centre with full 360° access maintained at all times. Metrolabs island tables are fabricated with reinforced heavy-duty cross-bracing for instrument weights up to 500kg UDL.
Laminar Flow Continuity — No Dead Zones Around the Island
Because the island table is freestanding in the room with return air risers around the room perimeter, the laminar airflow from the ceiling HEPA passes through the perforated worksurface and continues downward to the floor risers on all four sides — creating a complete laminar clean zone above and around the entire table. Unlike a wall-side table where the wall on one side prevents full 360° airflow circulation, the island table allows the laminar piston to act continuously around the full perimeter, providing the most effective contamination control possible for work conducted on a horizontal surface.
Dry/Wet Zone Demarcation — Integrated with Wall-Side Tables
In pharmaceutical cleanrooms and research labs, island tables are commonly used in combination with wall-side tables to create a spatial division between wet operations (titrations, dilutions, culture work — conducted at the wall-side tables with integral sinks) and dry operations (weighing, dispensing, instrument work — conducted at the central island table). This dry/wet demarcation reduces cross-contamination risk between operations, improves workflow organisation, and allows the island table to be specified with a solid SS worksurface (no drain) without compromising the wet operation requirement at the wall-side tables.
Four Island Table Configurations — Matched to Your Process
Metrolabs island tables are available in four structural configurations — each suited to different team sizes, instrument types, and room layouts:
Standard Island Table — Continuous Open Frame
A single, continuous open-frame island workstation — four-sided access, no under-table storage, fully open underbody for maximum floor cleaning access and return air circulation at floor level. The standard configuration for pharmaceutical weighing suites, cleanroom dispensing operations, and analytical chemistry workbenches where multiple simultaneous operators require access and the cleanroom floor cleaning protocol demands unrestricted underfoot access. Frame construction is fully TIG-welded SS 304 or SS 316L tubular structure with 4-point encapsulated stainless leg levellers. The open frame eliminates the under-table dead spaces that closed-base islands create — each dead space being a particle accumulation zone and a floor cleaning obstacle. Available with solid or perforated worksurface in any standard finish.
Island Table with Integrated Under-Bench Storage
An island workstation with integrated SS 316L storage cupboards built into one side of the under-bench space — providing enclosed, organised storage for consumables, PPE, and equipment at the point of use without requiring a separate storage unit elsewhere in the room. The under-bench cupboards are integral to the table frame structure — not separate free-standing units — maintaining a continuous, sealed base on the storage side. Cupboard tops are sloped at 30° to enforce GMP compliance (no horizontal storage surfaces). The opposite side of the island retains its open-frame configuration for floor cleaning access and return air riser unobstructed airflow. Cupboard doors use flush-recessed handles, concealed hinges, and magnetic catches — all surfaces are smooth SS 316L wipeable with IPA. Shelves are adjustable perforated SS 316L.
Knee-Hole Island Table — Seated / Standing Hybrid
An island table designed for seated work operations — one or both long sides include a knee-hole recess at standard seated height (720mm) that allows operators to sit at the table with their legs under the worksurface, maintaining a comfortable, ergonomic working posture for extended precision operations (microscopy, pipetting, cell counting, documentation). The knee-hole design requires careful structural engineering — the underbody cross-bracing must route around the knee-hole recess without reducing the worksurface load capacity. Metrolabs knee-hole island tables are fully TIG-welded with reinforced lateral bracing above the knee-hole recess to maintain full UDL load capacity across the entire worksurface including the knee-hole sections. The knee-hole base is fully enclosed with smooth SS side panels to prevent under-table storage (GMP compliance) while providing a clean, professional appearance.
Large Machine Island — Heavy-Duty Instrument Housing
A heavy-duty island platform designed specifically to house large analytical instruments — HPLC systems, mass spectrometers, dissolution testers, freeze dryers, bioreactors — that exceed the standard load capacity of a normal island table and require all-round access for operation, sample injection, maintenance, and calibration. The heavy-duty machine island uses a larger-section SS 304 tubular frame (50×50×3mm vs 38×38×2mm standard) with additional mid-span cross-bracing to achieve a 500kg UDL rating across the entire worksurface. Anti-vibration mounts are standard — four natural rubber or neoprene compression isolators between the leg tubes and the levelling foot discs reduce floor vibration transmission to the instrument. The worksurface is solid SS 316L (no perforations — instruments require stable, continuous base contact) with drip channels at the table perimeter routing any condensation or reagent spills to SS 304 collection trays at the base.
Six Precision Engineering Features of Every Metrolabs Island Table
Every Metrolabs island cleanroom work table is built to the following engineering standards — features that make it a structural asset of the cleanroom rather than a piece of furniture placed inside it:
SS 304 & SS 316L — Throughout, No Exceptions
The entire island table — worksurface, frame legs, cross-bracing, levelling foot housing, and any integrated storage or service components — is fabricated from the same SS 304 or SS 316L specification. No mixed-material construction that creates galvanic corrosion risk at interfaces, no non-stainless insert components that create corrosion-prone particle shedding points, and no SS surface bonded to a non-SS substrate. For pharmaceutical Grade A/B islands, SS 316L is standard — the molybdenum addition provides pitting resistance against chloride-based disinfectants (bleach, ClO , chlorinated alkaline cleaners) and full VHP compatibility at up to 1000 ppm. Post-fabrication, all tables are degreased with IPA and citric acid passivated to ASTM A967 — the passivation certificate is supplied with every table.
Full TIG Weld — Every Frame Junction, No Bolt Joints
Every joint in the island table frame — legs to top frame, cross-bracing to legs, leveller housing to leg base, storage side panels to frame — is a full penetration TIG weld, dressed flush and smooth. No bolt, screw, or riveted connection exists anywhere in the structural assembly. For an island table, this is particularly important — unlike a wall-side table where the wall provides lateral stability, an island table relies entirely on the structural integrity of its welded frame for rigidity. A bolted or clip-assembled island table will develop frame rattle and joint loosening from the vibration of instruments and the daily use loads of multiple simultaneous operators — each loosening generating metallic particles. The fully welded Metrolabs island frame is dimensionally stable for the full service life of the cleanroom.
Electropolished Surface — Ra <0.5μm Grade A/B
The worksurface, frame, and any exposed surface of the island table is electropolished to Ra <0.5μm for Grade A/B pharmaceutical applications — removing the sub-micron peaks that provide physical anchorage for bacterial biofilm adhesion. Electropolished SS 316L is the EU Annex 1 recommended surface specification for pharmaceutical cleanroom furniture in aseptic zones. The electropolished finish also enhances the visual reflectivity of the worksurface — operators can detect product residue, cross-contamination, and cleaning validation failures by visual inspection rather than requiring swab sampling after every cleaning cycle. Mirror finish (Ra <0.4μm) and hairline finish (Ra ~0.8μm) are available for Grade C/D applications.
Overhead Service Pendant — No Floor Cable Routes
The fundamental challenge of a freestanding island table in a cleanroom is service supply — gas, power, vacuum, and compressed air connections that a wall-side table routes through or along the wall must reach the island table without floor-level cables and supply lines that create trip hazards, cleaning obstacles, and particle accumulation sites. Metrolabs island tables are supplied with an overhead service pendant system — a SS 304 or powder-coated aluminium overhead boom or drop-down column that connects to the ceiling structure above the island and carries all service connections to the worksurface level from above. Power sockets (IP54 SS 316L flap-cover), gas taps (bayonet or compression), vacuum fittings, and compressed air outlets are all pendant-mounted — presenting service connections vertically above the work zone without any floor-level routing.
4-Point SS Levelling Feet — Anti-Vibration Option
Four-point encapsulated stainless steel levelling feet — one at each leg base — allow precise levelling of the island table worksurface on uneven cleanroom floors. The foot design uses a threaded SS 316L adjustment bolt housed within a smooth-bore SS cylinder — no exposed thread between the foot housing and the floor, preventing particle accumulation in the thread spiral. For tables housing high-accuracy analytical instruments, natural rubber or neoprene anti-vibration isolators are inserted between the foot disc and the leg tube — decoupling the instrument from floor-borne vibrations and from the structural vibrations generated by other instruments or HVAC equipment. Vibration isolation is critical for analytical balances (which specify floor vibration limits in mg), UV-Vis spectrophotometers, and real-time PCR instruments.
Custom Plan Geometry — Any Room Shape or Size
Island tables are not limited to rectangular plan forms — Metrolabs fabricates island tables in any plan geometry required by the cleanroom layout: standard rectangular (most common), square (equal access from all sides — preferred for centrifuge and characterisation instrument clusters), elongated narrow (for corridor-style cleanrooms where floor width constrains the table depth), and octagonal or hexagonal (for large central work hubs where a rectangular form would block foot traffic flow). All non-rectangular plan forms maintain the same 360° access principle — no side of the table is closer than 900mm to the nearest wall or obstruction, ensuring unobstructed operator approach from every direction. Custom plan geometry tables are fabricated to drawn dimensions from the room layout drawing.
Metrolabs Island Table — Technical Standards
Every Metrolabs island cleanroom work table is fabricated, finished, and documented to the following technical parameters:
| Feature | Metrolabs Standard | Cleanroom Benefit |
|---|---|---|
| Grade A/B Material | SS 316L electropolished | Max corrosion resistance — VHP & chloride rated |
| Grade C/D Material✓ Std | SS 304 passivated | IPA / QAC / PAA compatible — cost-effective |
| Surface Finish | EP Ra<0.5μm / Mirror / Hairline | Biofilm inhibiting — visual contamination detection |
| Welding | Full TIG — no bolt joints | No frame rattle — no particle-shedding joints |
| Perforated Top | ∅25mm / 45mm pitch — laser-cut | Laminar piston through table — Grade A preserved |
| Height Range | 700–900mm adjustable | Seated / standing — ergonomic for all operators |
| Standard Load | 250kg UDL (heavy-duty: 500kg) | Supports instruments from balances to HPLC systems |
| Service Pendant | Overhead — SS / powder-coated Al | No floor cable routes — free 360° floor access |
Island Cleanroom Tables Across Every Regulated Sector
Central 360°-access workstations for every cleanroom where multiple operators, large instruments, or central process hubs demand island configuration:
Pharmaceutical GMP
SS 316L EP island tables for weighing suites, dispensing rooms, and process labs. Overhead service pendants, anti-vibration mounts for analytical balances, perforated tops for Grade A zones.
Aseptic & Biologicals
Perforated SS 316L island tables in Grade A/B filling and cell culture suites — 360° access maintains laminar coverage on all sides, no dead zones at table perimeter.
Biotech & Cell Culture
Knee-hole island tables for cell counting, cytometry, and microscopy — seated operator ergonomics with 360° standing access for colleagues. VHP compatible for ATMP decon programmes.
Hospital Pharmacy
SS 316L island tables for hospital pharmacy cleanrooms and compounding suites — multiple pharmacists at one central preparation table, overhead service pendant for pyrogen-free water supply.
Electronics Cleanrooms
ESD-rated SS 304 island tables with conductive laminate worksurface inserts for semiconductor and electronics cleanrooms — central PCB assembly, inspection, and testing workstations.
Microbiology & BSL
Heavy-duty SS 316L islands for BSL-2/3 containment labs — bioreactor and fermentation platform tables with anti-vibration mounts, drip channels, and service pendant for gas manifolds.
Food & Beverage
SS 316L island tables for FSSAI high-care food production cleanrooms — central preparation and portioning stations with antimicrobial surface treatment and daily wet wash-down compatibility.
NABL Research Labs
SS 304 island tables for NABL testing labs — central instrument platforms with anti-vibration feet for spectrometry, HPLC, and chromatography equipment. Full material and passivation documentation.
Engineered as a Structural Extension of Your Cleanroom — Not Furniture Placed Inside It
Metrolabs island tables are designed and specified as structural cleanroom components — every decision from plan geometry to surface finish is evaluated against the room’s ISO class, GMP grade, and operational workflow:
Layout-Optimised Position Planning
Metrolabs positions island tables at the cleanroom design stage — confirming that the 900mm operator access corridors are maintained on all four sides, that the overhead service pendant connection point aligns with the ceiling structure, and that the island table positions do not interrupt the return air riser network or create laminar flow dead zones between the island and the walls. Position planning is documented on the cleanroom layout drawing submitted for GMP facility design review.
Complete Documentation Package at Delivery
Every Metrolabs island table is supplied with: mill test certificate (MTC) confirming SS 304/316L grade and composition; ASTM A967 citric acid passivation certificate; dimensional inspection report confirming worksurface flatness (±1mm/m) and leg level tolerance (±0.5mm); and service pendant installation documentation. This package is the IQ (Installation Qualification) evidence for the cleanroom furniture as a GMP-regulated item.
VHP Compatibility — All Materials and Pendant Components
For pharmaceutical facilities with room-wide VHP programmes, all island table components — including the overhead service pendant, the gas tap housings, the power socket covers, and the anti-vibration mount material — are specified for VHP compatibility. SS 316L table and pendant structure withstands 1000 ppm VHP cycles; neoprene anti-vibration mounts are VHP-resistant; power socket covers are SS 316L with EPDM seals.
Coordinated with Wall-Side Table Package
When Metrolabs supplies both island and wall-side tables for the same cleanroom, the material specification, surface finish, levelling foot design, and service integration approach are all coordinated — creating a coherent, unified clean shell aesthetic and a single documentation package for the complete workstation package. Mixed-material worksurface insert plates for island tables (solid SS inserts in perforated fields for specific instrument positions) are coordinated with the room layout drawing.
Island vs Wall-Side — Workstation Selection Guide
Custom-Built for Your Process — Four Key Options
Metrolabs fabricates every island table to the specific dimensional, configuration, and integration requirements of your cleanroom and process:
Custom Dimensions & Plan Geometry
Standard rectangular, square, elongated, or fully custom plan geometry — designed from the cleanroom layout drawing. Any length 900–3600mm and any depth 750–1200mm. Height adjustable 700–900mm. Table positioned to maintain 900mm minimum operator corridors on all four sides. Plan dimensions confirmed with the facility layout before fabrication to avoid post-installation clearance issues.
Mixed Surface Configuration — Zones on One Top
For island tables serving both instrument housing and manual operation simultaneously — where some sections of the worksurface must be solid (instrument base contact) and other sections perforated (laminar preservation in the manual work zone) — Metrolabs fabricates mixed-surface island tops: laser-cut perforated sections in the manual work zones with solid SS insert plates in the instrument positions. Insert plates are the same material and finish as the perforated top, flush-fitted, and removable without tools for full top cleaning access.
Overhead Service Pendant — Bespoke Service Layout
The service pendant is designed for each table — connection point, drop length, boom reach, and service type (gas species, number of outlets, power socket count, vacuum port positions) specified from the process requirement. Pendant structural ratings confirmed against the ceiling fixing load and the service weight. Service identification labels are colour-coded and engraved SS — not adhesive labels that degrade in VHP environments. Pendant boom can retract or rotate to provide access from any side during instrument configuration changes.
Anti-Vibration System — Instrument-Specific Isolation
Anti-vibration isolator specification calculated from the instrument mass, the floor vibration spectrum at the table position (measured with a vibration analyser during site survey), and the minimum isolation frequency required by the instrument specification. Isolation options: natural rubber mounts (1–5Hz isolation, standard), air spring isolators (0.5–2Hz isolation, for the most sensitive analytical instruments), or active electronic cancellation platforms (for metrology-grade instruments in high-vibration environments). All isolator types available in VHP-compatible materials.
From Layout Design to Commissioned & Documented Island Workstation
Metrolabs manages the complete island table supply and installation process — from layout planning through installation, service pendant commissioning, and IQ documentation:
Layout Planning & Position Design
Island table position confirmed on cleanroom layout drawing. 900mm operator corridors verified on all four sides. Ceiling pendant connection point agreed with structural engineer. Service types, outlet positions, and boom geometry specified. Customer sign-off on dimensioned drawing.
Fabrication & QC
Island table and pendant fabricated in specified SS 304/316L. All TIG welds completed and dressed. Perforations laser-cut. Electropolishing completed where specified. ASTM A967 passivation performed. Dimensional and finish QC. MTCs and passivation certs issued.
Installation & Pendant Commissioning
Island table installed at design position. Levellers adjusted — worksurface level verified (±1mm/m). Anti-vibration mounts fitted where specified. Overhead pendant mounted to ceiling — service connections made and tested. Each power socket, gas tap, and vacuum port tested. Floor clearance confirmed.
Documentation & IQ Issue
Table dimensions, material certs, passivation certs, levelling records, pendant installation records, service test records, and installation photographs compiled as cleanroom furniture IQ documentation package for facility validation submission.
Island Tables Specified to Every Major Cleanroom Standard
WHO & EU GMP
WHO GMP and EU Annex 1 require pharmaceutical cleanroom furniture to be smooth, non-porous, impervious, and easy to clean. SS 316L electropolished island tables satisfy all four requirements. Overhead pendants eliminate floor cable routes that create cleaning obstacles cited in EU Annex 1 facility design guidance.
WHO GMP · EU Annex 1ISO 14644-4
ISO 14644-4 requires cleanroom furniture surfaces to be compatible with cleaning and decontamination methods. SS 304/316L, full TIG welded construction, and ASTM A967 passivation satisfy the ISO 14644-4 material and surface requirements for all ISO Class 3–8 applications. Documentation supplied for facility qualification.
ISO 14644-4ASTM A967 & 21 CFR
ASTM A967 passivation certificates and SS mill test certificates satisfy the US-FDA 21 CFR and pharmaceutical cGMP requirements for equipment construction material documentation. The island table IQ documentation package is structured to meet FDA equipment qualification expectations for pharmaceutical manufacturing facilities.
ASTM A967 · 21 CFRNABL & COSHH
NABL ISO/IEC 17025 requires documented equipment material specifications for testing laboratory furniture. MTCs and passivation certificates satisfy this requirement. Chemical storage configurations comply with COSHH flammable reagent storage regulations where island tables incorporate reagent storage.
NABL · COSHH · OSHAReady to Install Precision-Built Island Work Tables in Your Cleanroom?
Contact Metrolabs for a free consultation. Our cleanroom furniture specialists will assess your room layout, ISO class, GMP grade, operator count, and instrument requirements — then design, fabricate, install, and document your island workstations with full IQ documentation at delivery.
