Air-Tight Cleanroom Doors — Maximum Seal Performance for Critical Environments
When standard Class 4 hermetic doors are not enough — when your application demands the absolute minimum air leakage possible — Metrolabs air-tight cleanroom doors deliver Class 0 to Class 2 performance with multi-point compression locking systems, inflatable tube seals, and full-perimeter gasket compression. Engineered for sterile manufacturing, biosafety containment, nuclear, and radiological facilities where zero uncontrolled air exchange is a safety and compliance requirement.
Beyond Hermetic — When Class 4 Is Not Enough
The term “hermetic” is often used loosely in the cleanroom industry to describe any door with improved air tightness. Metrolabs distinguishes between hermetic Class 4 doors (<1 m³/h) and true air-tight doors (Class 0–2) — which use fundamentally different sealing technologies to achieve orders-of-magnitude lower air leakage.
Inflatable Tube Seal Technology
Unlike brush or compression seals that rely on contact pressure at specific points, an inflatable tube seal deploys pneumatically to fill the entire gap between the door leaf and the frame — conforming to any surface irregularity and creating a continuous, unbroken gasket contact that eliminates leakage pathways impossible to address with mechanical seals alone.
Multi-Point Compression Lock — Even Seal Pressure
Standard doors are held closed by a single latch point, which creates uneven seal contact — high compression near the latch, minimal compression at the hinge edge. Air-tight doors use 4–8 compression lock points distributed around the full door perimeter, ensuring equal gasket contact and uniform seal pressure at every point simultaneously.
Pressure Relief Valve — Structural Safety
In pressure-differential environments, a sudden change in cleanroom pressure (from HVAC fault or system surge) can create forces that could damage a sealed door, its frame, or the adjacent panel construction. Air-tight doors for pressure-differential applications are fitted with calibrated pressure relief valves that open at a set differential, protecting the structure while maintaining the controlled environment boundary.
Tested and Certified Air Leakage Performance
Unlike hermetic doors that may be specified as “Class 4” without site-tested evidence, Metrolabs air-tight doors are supplied with factory air leakage certificates and site-commissioned with pressure differential testing to confirm the achieved leakage class under actual installation conditions.
EN 12207 Air Leakage Classes — Understanding the Difference
The European standard EN 12207 classifies door air leakage from Class 0 (virtually zero leakage) to Class 4 (highest permissible for hermetic doors). Air-tight doors target Class 0 to Class 2:
| Class | Max Leakage (m³/h at 4 Pa) | Door Technology | Applications |
|---|---|---|---|
| Class 0 | <0.01 m³/h | Inflatable Tube Seal | BSL-3/4, Nuclear, ATMP |
| Class 1 | <0.10 m³/h | Multi-Gasket Compression | Sterile Mfg, ISO 3–4 |
| Class 2 | <0.30 m³/h | Enhanced Hermetic | Aseptic Suites, ISO 5 |
| Class 3 | <0.50 m³/h | Standard Hermetic | ISO 6–7 Pharma |
| Class 4 | <1.00 m³/h | Hermetic Swing Door | ISO 7–8 QC / GMP |
Four Situations That Mandate Air-Tight Doors
Biosafety Level 3 & 4 Containment
BSL-3 and BSL-4 facilities handling select agents and high-consequence pathogens require airtight room boundaries to maintain negative pressure containment. Any leakage could allow pathogen-laden aerosols to escape — air-tight Class 0 doors eliminate this risk at every access point.
Nuclear & Radiological Controlled Areas
Radiation-controlled rooms and nuclear facilities require airtight boundaries to prevent radionuclide contamination of adjacent areas. Multi-point compression doors with inflatable seals and pressure relief are specified to protect personnel and prevent environmental contamination.
ATMP & Advanced Biologic Manufacturing
Advanced Therapy Medicinal Products (gene therapy, cell therapy) require Grade A manufacturing environments with the most stringent contamination control. Class 0–1 air-tight doors are specified for access points in ATMP suites where a single contamination event can destroy entire production batches worth millions of rupees.
Pressurised & Differential Pressure Rooms
Explosion-proof rooms, pressure test chambers, hyperbaric facilities, and any room with significant positive or negative pressure differential require doors that can withstand the structural loading from the pressure difference while maintaining the airtight boundary — including integrated pressure relief.
Six Air-Tight Cleanroom Door Configurations
Metrolabs supplies six air-tight door configurations — each engineered for a specific containment class, access pattern, and regulatory environment:
Inflatable Tube Seal Swing Door (Class 0)
The highest-performance air-tight cleanroom door — inflatable silicone tube seal pneumatically deployed to the full-perimeter frame contact on closing. Achieves Class 0 air leakage (<0.01 m³/h at 4 Pa). The tube inflates from a compressed air supply (4–6 bar) and creates a continuous, conforming gasket contact that compensates for any surface irregularities in the frame or leaf. Standard for BSL-3/4, nuclear facility access, and ATMP manufacturing suite boundaries.
Multi-Point Compression Swing Door (Class 1)
Four to eight compression lock points distributed around the full door perimeter drive the door leaf against a compressible gasket with equal force at every point. Achieves Class 1 performance (<0.10 m³/h) without requiring pneumatic infrastructure. Single-handle lever actuates all lock points simultaneously through a cam mechanism — no keys required. Standard for aseptic manufacturing suites, ISO Class 3–4 cleanrooms, and Grade A/B pharmaceutical airlock access points.
Double Gasket Air-Tight Swing Door (Class 2)
A primary and secondary compressible gasket system in a stepped frame profile. When the door closes, the primary gasket compresses first; a secondary lock mechanism then drives the leaf further, compressing the inner gasket to complete the dual-seal system. Achieves Class 2 performance (<0.30 m³/h). Suitable for aseptic pharmaceutical suites, hospital isolation rooms, and facilities requiring enhanced air-tightness without the complexity of inflatable seal systems.
Air-Tight Interlocked Airlock Pair
Two air-tight doors (Class 0 or Class 1) connected to an electro-mechanical interlock controller — ensuring only one door can be open at any time. Designed for pharmaceutical airlocks between BSL grades, nuclear facility air-locks, and cleanroom pressure buffer zones where the absolute prevention of direct pathway between zones is a regulatory or safety requirement. Interlock data logging to 21 CFR Part 11 standard.
Pressure Relief Air-Tight Door
An air-tight multi-point compression door fitted with one or more calibrated pressure relief valves. When the internal room pressure exceeds the set differential (typically 50–300 Pa), the valve opens to relieve pressure and prevent structural damage to the door, frame, or surrounding wall panel. Mandatory for explosion-risk environments, hyperbaric cleanrooms, pressure-decay test chambers, and any facility where HVAC failure could create over-pressure events.
SS 316L Air-Tight Sterile Suite Door
Grade 316L stainless steel frame, leaf, lock mechanism, and all cleanroom-facing hardware — electro-polished to Ra < 0.5 μm. Multi-point compression lock with SS 316L handle actuator. VHP decontamination and hydrogen peroxide vapour compatible throughout. Silicone gasket resistant to all pharmaceutical sterilants. For ATMP, gene therapy, injectable sterile manufacturing, and any ISO Class 3–5 application with VHP room decontamination cycles.

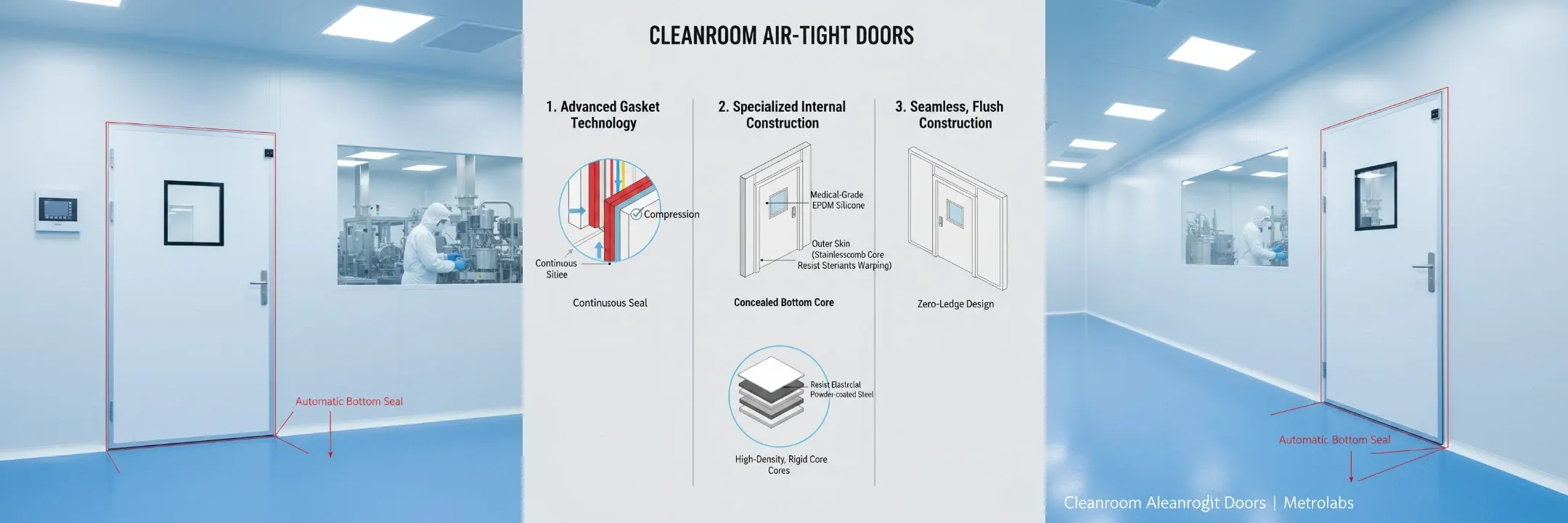

Engineering Maximum Air Tightness at Every Component
Every component of an air-tight cleanroom door system is engineered to contribute to the overall Class 0–2 leakage performance:
Inflatable Silicone Tube Seal
Medical-grade silicone tube (Shore A 40–60) pneumatically pressurised to 0.5–2 bar to fill the complete door leaf / frame gap. Automatic deflation on opening prevents seal damage and door sticking. Seal monitored by pressure sensor — alarm if seal fails to inflate or deflate correctly.
Multi-Point Compression Lock (4–8 Points)
Single-action lever or motorised actuator simultaneously drives 4–8 hardened steel bolts against compression blocks around the door perimeter. Adjustable bolt preload allows field calibration to achieve specified gasket compression at site conditions. Electro-mechanical version with fail-secure/fail-safe options for interlocked airlocks.
Pressure Relief Valve (PRV)
Calibrated relief valve set to open at the specified positive or negative pressure differential (range: 20–500 Pa). Spring-loaded poppet design with silicone seat. Automatically closes when pressure returns to normal range. Field-adjustable and replaceable without door removal.
Borosilicate or Laminated Vision Panel
Chemically resistant borosilicate glass (for aggressive environments) or laminated safety glass in a full-perimeter silicone-gasket frame. Flush-mounted with no rebate on cleanroom-facing surface. Radiation-resistant glass available for nuclear and radiological facilities.
Threshold Seal — No-Threshold Option
Floor seal options include: (1) motorised drop threshold seal that rises and locks against the door bottom on closure; (2) threshold-free design with inflatable floor-contact seal for wheelchair and trolley access; (3) standard stainless steel threshold for general access. All options achieve Class 0 contribution at the floor level.
Critical Applications Requiring Maximum Air Tightness
BSL-3 & BSL-4 Labs
Class 0 inflatable seal doors maintaining negative pressure containment for select agent and high-consequence pathogen research facilities.
Nuclear & Radiological Facilities
Airtight multi-point compression doors with radiation-resistant vision panels and PRV for nuclear controlled areas and radiological suites.
ATMP & Gene Therapy
SS 316L electro-polished air-tight doors for gene therapy, CAR-T, and mRNA manufacturing suites where batch contamination has catastrophic commercial consequences.
Aseptic & Sterile Manufacturing
Class 1–2 multi-point compression doors for Grade A/B injectable manufacturing, lyophilization suites, and sterile fill-finish areas.
Hospital Isolation Rooms
Negative pressure isolation room doors with Class 1–2 air tightness for infectious disease containment and transplant immunocompromised patient protection.
Pressure Test Chambers
Pressure relief valve-equipped air-tight doors for hypobaric and hyperbaric test chambers, explosion test rooms, and sealed pressure vessels.
Vaccine & Toxin Production
Class 0 containment doors for vaccine manufacturing facilities handling live attenuated viruses and toxin-producing microorganisms requiring full biocontainment.
Research & Defence Facilities
Air-tight doors for CBRN protection, classified research facilities, and defence laboratories requiring positive evidence of containment boundary integrity.
Choosing the Right Air Tightness Level
Not every cleanroom needs Class 0 air-tight doors — over-specifying adds cost and complexity. Under-specifying creates compliance failures. Metrolabs helps you select the correct air leakage class for each door opening:
Factory Air Leakage Certificates
Every Metrolabs air-tight door is factory-tested to EN 12207 and supplied with a test certificate showing the achieved leakage class. Site commissioning confirms performance under actual installation conditions — providing documented evidence for BSL, nuclear, and pharmaceutical regulatory submissions.
Inflatable Seal System Expertise
Inflatable tube seal systems require correct compressed air supply sizing, seal pressure monitoring, and fail-safe design in case of air supply failure. Metrolabs engineers specify, commission, and commission-test the complete pneumatic system — not just the door.
Integrated Pressure Relief & Monitoring
PRV selection, calibration pressure setting, and integration with the facility HVAC and BMS monitoring system are all provided as part of the air-tight door scope — ensuring the relief system functions correctly without compromising the containment boundary during normal operations.
Single Supplier — Complete Scope
Door leaf, frame, seals, locks, PRV, pneumatic supply, interlock controller, BMS integration, commissioning, and IQ documentation — all from Metrolabs under a single contract, eliminating the interface risk between multiple specialist suppliers.
Air Leakage Performance by Door Type
From Specification to Commissioned Air-Tight System
Air-tight doors require more rigorous commissioning than standard hermetic doors — Metrolabs manages the complete process:
Performance Class Selection
Required EN 12207 class determined by facility type (BSL, nuclear, pharma grade). Seal technology, lock points, and PRV pressure calibrated to the specific differential pressure and application.
Factory Manufacture & Testing
Door manufactured to specification. Air leakage factory-tested to EN 12207 with calibrated equipment. Test certificate issued confirming achieved Class 0–2 performance before dispatch.
Installation & Pneumatic Commissioning
Frame and door installed. Compressed air supply connected to inflatable seal system. Multi-point lock adjusted to specified gasket preload. PRV calibrated to facility design differential pressure.
Site Pressure Test & IQ Issue
Site air leakage measured by pressure decay test with calibrated equipment. Interlock function verified. Complete IQ documentation including factory cert, site test result, and PRV calibration record issued.
Air-Tight Doors Required by Critical Facility Standards
CDC / ABSA BSL-3 & BSL-4
CDC biosafety guidelines and ABSA International BSL-3/4 standards specify airtight room boundaries, continuous negative pressure, and doors that can be pressure-tested to demonstrate containment integrity — requiring Class 0 inflatable seal or equivalent technology.
CDC · ABSA BSL 3/4EU Annex 1 & WHO GMP (ATMP)
EU Annex 1 (2022) for Advanced Therapy Medicinal Products and WHO GMP for biological manufacturing require the highest level of containment and air boundary integrity — Class 1 or better at all Grade A zone boundaries.
EU Annex 1 · ATMPIAEA Nuclear Safety Standards
International Atomic Energy Agency guidelines for nuclear facility design require pressure-tight barriers at controlled area boundaries with pressure relief protection — met by Metrolabs PRV-equipped multi-point compression air-tight doors.
IAEA · Nuclear SafetyWHO Negative Pressure Isolation
WHO guidelines for hospital negative pressure isolation rooms (infectious disease and immunocompromised patient protection) specify room boundaries that maintain ≥2.5 Pa negative differential — requiring Class 1–2 air-tight door performance at all access points.
WHO · Isolation RoomsReady to Achieve Maximum Air Tightness?
Contact Metrolabs for a free technical consultation. Our specialists will assess your application, specify the correct EN 12207 air leakage class, recommend the appropriate seal technology, and deliver a factory-certified, site-commissioned air-tight door system with full IQ documentation.
