Cleanroom Pre-Filters & Fine Filters — The Essential Defence Strategy
The terminal HEPA filter is the most critical and most expensive component in your cleanroom HVAC system — and its service life is entirely determined by how well the upstream filtration protects it. A cleanroom AHU without a properly specified G4 pre-filter and F9 fine filter will clog its H14 terminal HEPA within 12–18 months, requiring disruptive and costly replacement. Metrolabs designs the complete tiered filtration system — G3/G4 primary pre-filters, F7/F8/F9 secondary fine filters — that protects your HEPA investment, maintains stable pressure gradients, and extends terminal filter life to 5–8 years.
Why Pre-Filters and Fine Filters Are Not Optional — They Are the Strategy
Many cleanroom projects specify the terminal HEPA grade correctly but underspecify — or completely omit — the upstream pre-filtration stages. The result is always the same: expensive, disruptive early terminal HEPA replacement, unstable pressure differentials, and unplanned production downtime. Pre-filters and fine filters are not optional accessories — they are the strategy that makes the entire cleanroom HVAC system economically and operationally viable.
The G4 Pre-Filter — Self-Sacrifice to Protect the System
The G4 pre-filter’s entire purpose is to sacrifice itself — to load up with atmospheric dust, lint, pollen, insect debris, and coarse particles before they reach the cooling coil, the F9 fine filter, and the terminal HEPA. A G4 panel filter is inexpensive, easily replaced without entering the AHU, and replaceable in minutes. Without it, the cooling coil fouls with accumulated dust — reducing heat transfer efficiency, creating microbial growth conditions on the wet coil surface, and dramatically shortening the service life of every downstream filter in the system.
The F7/F9 Fine Filter — Guardian of the Terminal HEPA
The F7 or F9 fine filter is the primary protection for the terminal H13/H14 HEPA. A pharmaceutical cleanroom AHU without an F9 fine filter stage will load its H14 terminal HEPA to replacement pressure drop within 12–18 months — requiring filter replacement, in-situ PAO re-validation, and significant cleanroom downtime. With an F9 fine filter in the AHU, the terminal HEPA service life extends to 5–8 years in typical pharmaceutical environments. The F9 captures 95% of particles at the Most Penetrating Particle Size — the particles that are hardest for the HEPA to capture and that load the HEPA fastest.
Low Pressure Drop — Reducing AHU Energy Load
Metrolabs specifies pre-filters and fine filters with advanced pleat geometry designed for low initial pressure drop across the filter media — reducing the static pressure the AHU fan must overcome, which directly reduces fan energy consumption. A cleanroom HVAC system running 8,760 hours per year with filters that have a 50% higher pressure drop than necessary costs significantly more to operate over a 5–8 year filter service period than one with correctly specified low-resistance filter media. Correct filter selection is a long-term energy optimisation decision, not just a contamination control decision.
Differential Pressure Monitoring — Predictive Maintenance
Metrolabs integrates differential pressure gauges — both mechanical magnehelic gauges for local reading and electronic transmitters for BMS data feed — across every filter stage. As each filter progressively loads, its differential pressure rises in a predictable curve. The BMS continuously trends this pressure rise and triggers a maintenance alert when the DP approaches the replacement threshold — before airflow drops below the minimum required for ISO class maintenance. This predictive approach eliminates both premature filter replacement (wasteful) and overdue replacement (potentially catastrophic for ISO class).
G3 to F9 — Every Pre-Filter and Fine Filter Grade Explained
Metrolabs supplies the complete range of pre-filter and fine filter grades for cleanroom AHU applications — from the coarsest G3 intake filter to the finest F9 HEPA protection stage:
G3 Pre-Filter — Coarse Intake Protection
The most coarse filter grade, G3 is used in applications where the AHU fresh air intake is exposed to high levels of atmospheric coarse contamination — coastal industrial environments, heavily vegetated areas, or construction zones where large airborne particles are prevalent. The G3 extends the life of the downstream G4 filter by capturing the largest particles (greater than 10μm) at the fresh air intake before they enter the AHU casing. Constructed from synthetic non-woven fibre media in a cardboard, plastic, or aluminium frame. G3 replacement frequency in exposed outdoor intakes is typically 4–8 weeks depending on the local atmospheric particle load.
G4 Pre-Filter — Primary AHU Protection (Standard)
The standard primary pre-filter for cleanroom AHU applications worldwide. G4 captures greater than 90% of synthetic dust (EN 779 arrestance test), including coarse atmospheric dust, lint, pollen, and fibres that would otherwise foul the cooling coil and rapidly load the downstream fine and HEPA filters. The G4 is deliberately specified with an inexpensive filter media — typically synthetic non-woven or metallic mesh — so that frequent, low-cost replacement of the G4 extends the life of the expensive F9 and H14 filters downstream by 300% or more. Available in panel (flat) and pleat (extended surface) configurations. Aluminium or galvanised steel frame standard for structural integrity under AHU operating pressures.
F7 Fine Filter — Sub-Micron Pre-Filtration
The F7 fine filter captures 80–90% of particles at the Most Penetrating Particle Size (MPPS – approximately 0.3μm) and achieves an ePM1 efficiency of 55% (ISO 16890). Used as the fine filtration stage in AHUs serving ISO Class 7–8 pharmaceutical Grade C/D cleanrooms, general hospital cleanrooms, and food production facilities where H13 terminal HEPA is specified. The F7 bridges the filtration gap between the G4 coarse pre-filter and the terminal HEPA — extending HEPA service life by removing the sub-micron particle burden before it reaches the terminal stage. Available in pocket/bag configuration (large dust-holding capacity, low initial pressure drop) and rigid mini-pleat configuration (higher efficiency, reduced depth).
F8 Fine Filter — High-Efficiency Intermediate
F8 achieves 90–95% efficiency at MPPS with ePM1 efficiency of 70% (ISO 16890) — positioned between F7 and F9 for applications where F7 offers insufficient protection of the terminal HEPA but the cost of F9 media is not justified. Used as the secondary fine filter in AHUs serving hospital operating theatres with H13 terminal HEPA, and in NABL laboratory cleanrooms with frequent occupancy generating high sub-micron bioaerosol loads. Also used as the sole fine filter stage in high-recirculation air handling systems where the return air particle load is lower than fresh air intake systems. Pocket bag configuration standard, with stainless steel or aluminium header frame for hygienic AHU integration.
F9 Fine Filter — HEPA Protection (Pharma Standard)
The highest-grade pre-filter for pharmaceutical and biotech cleanroom AHUs — achieving 95%+ efficiency at MPPS and ePM1 efficiency of 80%+ (ISO 16890). The F9 is the pharmaceutical industry standard for protecting H14 terminal HEPA filters in Grade A through D cleanrooms. Its 95%+ capture of MPPS particles — the size range that loads HEPA media fastest — reduces terminal HEPA loading by up to 95% compared to an unprotected HEPA, extending service life from 12–18 months to 5–8 years. F9 filters are available in deep pocket bag configuration (12 pockets per unit, maximum dust-holding capacity, low resistance) and rigid cell configuration (compact depth for space-constrained AHUs). Moisture-resistant media prevents microbial growth within the AHU. Recommended for all GMP Grade A/B/C pharmaceutical manufacturing facilities, aseptic suites, ATMP labs, and BSL-2/3 facilities.
EN 779 & ISO 16890 — Filter Classification Reference Table
Metrolabs pre-filters and fine filters are classified and tested to EN 779 (legacy European standard) and ISO 16890 (current international standard). Understanding both classifications is essential for specifying the correct filter for your cleanroom application:
| Grade | EN 779 Class | ISO 16890 ePM | Application |
|---|---|---|---|
| G3 | Coarse >60% | — | Outdoor fresh air intake protection |
| G4✓ Std AHU | Coarse >90% | — | AHU primary pre-filter — coil & HEPA protection |
| F7 | Fine 80–90% | ePM1 55% | ISO 7–8, Grade C/D, H13 terminal |
| F8 | Fine 90–95% | ePM1 70% | Hospital OT, high-recirculation systems |
| F9✓ Pharma Std | Fine 95%+ | ePM1 80%+ | GMP Grade A–D, aseptic, ATMP, BSL |
ⓘ ISO 16890 replaced EN 779 as the primary filter testing standard in 2018. ISO 16890 ePM1 measures efficiency against particles 0.3–1μm — the most relevant size range for pharmaceutical and healthcare contamination control. Many legacy specifications still reference EN 779 — Metrolabs can cross-reference both standards for regulatory compliance documentation.

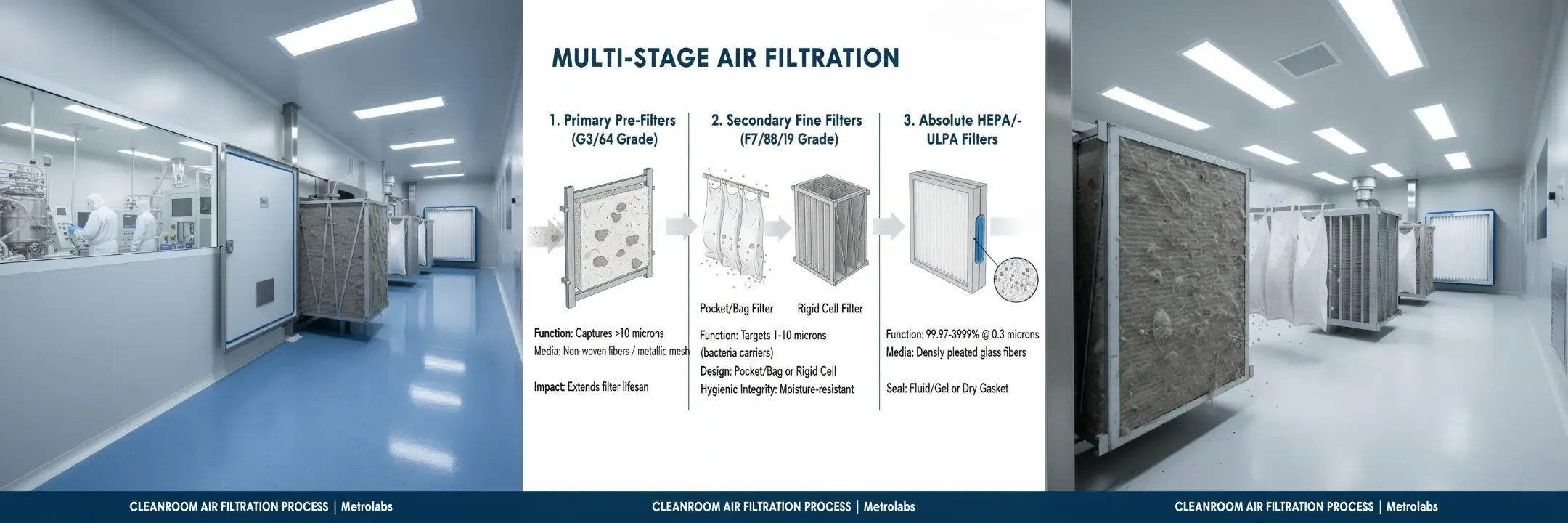

Four Filter Physical Configurations for Every AHU Layout
Metrolabs supplies pre-filters and fine filters in four physical configurations — each suited to different AHU dimensions, filter stage positions, and dust-holding capacity requirements:
Panel Pre-Filter (Flat / Pleated) — G3 / G4
The simplest and most commonly replaced filter configuration — a flat or lightly pleated filter panel held in a slide-in frame within the AHU intake section. Flat panel G4 filters have lower dust-holding capacity but the lowest profile depth — suitable for shallow AHU intake sections and for applications requiring very frequent replacement cycles (every 4–8 weeks). Extended surface (pleated) G4 panels increase dust-holding capacity by 2–3x without increasing frame depth, making them standard for pharmaceutical AHUs where filter change frequency must be minimised to reduce maintenance events in adjacent controlled areas. Aluminium or galvanised steel frame with corner clips for rapid tool-free removal and replacement. Cardboard frames available for non-pharmaceutical applications requiring lowest-cost replacement.
Pocket / Bag Filter — F7 / F8 / F9
The standard fine filter configuration for pharmaceutical cleanroom AHUs. Deep pockets (typically 6–12 pockets per unit, 360–530mm deep) hang inside the AHU to present a very large filter surface area to the airflow — dramatically increasing dust-holding capacity and reducing initial pressure drop compared to a flat panel filter of equivalent efficiency. Moisture-resistant polyester or glass fibre pocket media prevents microbial growth within the AHU. The large surface area of F9 pocket bag filters is the primary reason they provide 5–8 years of terminal HEPA protection — the particle load is distributed across a vastly greater media area than a flat panel could achieve. Galvanised steel or SS 304 header frame with individual pocket weld or heat-bonded construction. Available in 6, 8, 10, and 12-pocket configurations for varying AHU cross-sections.
Rigid Cell (Mini-Pleat / V-Bank) — F7 / F9
The rigid cell fine filter uses a mini-pleat filter pack — densely folded filter media supported by hot-melt adhesive beads — in a rigid frame (aluminium, GI, or SS 304). The V-bank (V-form) configuration angles two filter packs in a V shape within a single frame — doubling the filter surface area within a shallow depth for space-constrained AHUs where pocket bag filters cannot fit. Rigid cells achieve equivalent efficiency to pocket bags at significantly reduced frame depth — typically 150–292mm vs 530mm — making them the choice for AHU retrofits and space-limited installations. Higher initial pressure drop than equivalent pocket bags, but the compact format and rigid structure make them the standard for AHU bank replacement where the existing filter bank is sized for pocket bags but depth is constrained.
Carbon / Activated Carbon Pre-Filter — Odour & VOC
For pharmaceutical AHUs supplying air to manufacturing areas where solvent odours, VOCs, or chemical vapours must be removed from the incoming air stream — either for product protection or personnel exposure control — Metrolabs supplies activated carbon pre-filter modules. Available as carbon-impregnated panel filters (granular activated carbon embedded in non-woven media) for modest VOC loads, or as deeper carbon cell modules (granular activated carbon in honeycomb cell carrier) for higher VOC removal requirements. Activated carbon pre-filters are used in combination with conventional G4 particulate pre-filters and F9 fine filters — not as replacements — since carbon media does not provide adequate particulate arrestance. Carbon loading capacity and replacement frequency are calculated based on target VOC species and inlet concentration.
Differential Pressure Monitoring — The Most Effective Tool for Managing HVAC Health
The pressure drop across a filter is the single most reliable indicator of its remaining service life and the health of the entire air handling system. Metrolabs integrates comprehensive DP monitoring at every filter stage:
Magnehelic Gauge — Local Stage Indication
A mechanical magnehelic differential pressure gauge is installed across each filter bank — G4, F9, and H14 stages. The gauge face is visible on the AHU access panel, giving maintenance personnel an immediate local reading of each filter’s loading status during routine inspection without needing to access BMS data. Colour-coded zones (green = OK, yellow = approaching replacement, red = replace now) provide instant visual status assessment.
Electronic DP Transmitter — BMS Integration
Electronic differential pressure transmitters (4–20mA or MODBUS signal) across each filter bank feed continuous DP data to the Building Management System. The BMS trends the DP rise rate for each filter stage over time, distinguishing normal loading curve progression from anomalous rapid loading (indicating a duct bypass, filter seal failure, or unusual particle event) and triggering a maintenance alert when the DP approaches the replacement threshold — days or weeks before airflow actually drops to a level that affects ISO class performance.
VFD Fan Response — Constant Airflow Under Loading
As filters load and their DP increases, the AHU EC fan VFD responds by increasing fan speed to maintain constant supply airflow — preserving the design air change rate and ISO class throughout the filter service life. The BMS monitors both the filter DP (loading indicator) and the VFD speed set point (airflow compensation indicator) together — rising VFD speed combined with rising filter DP provides the most accurate prediction of remaining filter life and the most reliable trigger for planned maintenance.
21 CFR Part 11 — Filter Change Documentation
The BMS DP trend data for each filter stage constitutes a 21 CFR Part 11-compliant electronic record of the filter’s service history. When a filter replacement is triggered and performed, the BMS records the pre-replacement DP, the date and time of the change, and the post-replacement baseline DP — creating an automatic, tamper-evident maintenance log that satisfies US-FDA, WHO GMP, and EU Annex 1 filter change documentation requirements without manual paper records.
The G4 + F9 tiered strategy extends H14 terminal HEPA service life by 300–500% vs unprotected installations, eliminating approximately 4–6 disruptive filter replacements, 4–6 PAO re-validation events, and the associated cleanroom downtime over a typical 8-year facility operation period.
Pre-Filters & Fine Filters in Every Cleanroom Sector
Tiered pre-filtration is mandatory for any cleanroom HVAC system where long-term HEPA integrity and operational reliability are required:
Pharmaceutical GMP
G4 + F9 tiered pre-filtration protecting H14 terminal HEPA in Grade A through D suites — 5–8 year HEPA life with BMS DP monitoring and documented change records.
Aseptic & Sterile Suites
F9 deep pocket bag fine filters in AHUs serving Grade A/B aseptic filling lines — protecting H14 gel-seal terminal HEPA from sub-micron particle loading.
Biotech & ATMP Labs
G4 + F9 pre-filtration for ATMP and gene therapy GMP cleanroom AHUs — high-purity air supply protecting U15 terminal HEPA in ISO Class 3–5 environments.
Hospital HVAC
G4 + F7/F8 pre-filtration for hospital OT and ward AHUs serving H13 terminal ceiling HEPA — 3–4 year terminal HEPA life with predictive BMS replacement monitoring.
Food & Beverage
G4 + F7 pre-filtration for FSSAI and HACCP high-care food production AHUs — protecting H13 terminal HEPA from food processing environment particle loads.
Electronics Cleanrooms
G4 + F9 pre-filtration for ISO Class 4–7 semiconductor and electronics AHUs — high particulate control and extended HEPA service in continuous 24/7 production facilities.
BSL-2 & BSL-3 Labs
G4 + F9 supply AHU pre-filtration for biosafety containment labs — protecting H14 exhaust HEPA filters from rapid loading by bioaerosol-laden return air streams.
NABL Research Labs
G4 + F7 or F9 pre-filtration for NABL-accredited testing facilities — BMS DP trend records supporting ISO/IEC 17025 environmental monitoring documentation.
Engineered for Operational Excellence — Not Just Replacement Filters
Metrolabs does not sell pre-filters and fine filters as standalone replacement commodities — we design the complete tiered filtration system that ensures long-term HVAC performance, minimises total filtration cost of ownership, and satisfies all GMP documentation requirements:
Complete Tiered System Design — G4 Through H14
Metrolabs specifies the complete filtration system — G4 pre-filter grade, F7/F8/F9 fine filter grade, pocket configuration, frame material, and DP alarm setpoints — as a coordinated system designed to deliver the maximum terminal HEPA service life for your specific cleanroom ISO class and particle load environment. Not individual filter grades selected in isolation.
Non-Shedding, Moisture-Resistant Media
All Metrolabs fine filter media is guaranteed zero-fibre-migration — the polyester or glass fibre media is permanently bonded and does not shed fibres into the cleanroom air supply. Moisture-resistant treatment prevents microbial growth within the damp post-cooling-coil AHU section — a mandatory requirement for pharmaceutical and food AHUs where contaminated filter media would represent an uncontrolled microbial source upstream of the terminal HEPA.
Low Resistance — Advanced Pleat Geometry
Metrolabs specifies fine filters with engineered pleat geometry — optimised pleat depth, pleat count, and media selection — to minimise initial pressure drop while maximising dust-holding capacity. The result is a lower AHU fan energy demand throughout the filter service life and a longer period before the DP replacement threshold is reached, reducing both energy cost and maintenance frequency.
Rapid Change-Out — Minimal Cleanroom Downtime
All Metrolabs filter frames and AHU bank designs are specified for rapid tool-free filter replacement — slide-in panel frames for G4 units, push-in header-lock for pocket bag units — minimising the time the AHU access door is open and the duration of any reduction in conditioned air supply during the filter change event. For pharmaceutical facilities, planned filter change procedures are included in the Preventive Maintenance SOPs as part of the Metrolabs IQ documentation package.
Pre-Filter & Fine Filter Performance by Grade
Planned Filter Maintenance — Four-Stage Programme
Metrolabs designs and documents a comprehensive planned filter maintenance programme for every cleanroom HVAC installation — eliminating reactive filter replacements and unplanned downtime:
Baseline DP Commissioning
At HVAC commissioning, DP across each filter stage recorded at rated airflow. Baseline DP values documented in HVAC IQ as the “Day 1” reference. BMS alarm setpoints programmed at 70% of replacement threshold to provide advance warning. Magnehelic gauges calibrated and zeroed.
BMS DP Trend Monitoring
BMS continuously logs DP across G4, F9, and H14 filter stages. Trend analysis shows actual loading rate vs projected rate. VFD speed compensation trending indicates remaining service life. Maintenance alert generated automatically when DP approaches setpoint.
Planned Filter Replacement
Filter replacement performed on BMS alert — planned during scheduled maintenance window to minimise cleanroom impact. G4 panel replaced first (slide-out), then F9 pocket bags (push-out header). Post-replacement DP measured and compared to commissioning baseline to confirm correct filter seating. Maintenance log updated in BMS with date, DP pre/post, and filter batch number.
Documentation & GMP Record
BMS automatically records pre-replacement DP, replacement date/time, and post-replacement baseline for each filter stage. Filter change documented in 21 CFR Part 11-compliant electronic maintenance log. Updated preventive maintenance schedule generated for next replacement cycle based on observed loading rate trend.
Pre-Filter & Fine Filter Requirements by Regulatory Framework
WHO & EU GMP
WHO GMP and EU Annex 1 require a documented multi-stage filtration system with recorded filter change data as part of the HVAC qualification evidence. The F9 pre-filter stage protecting the H14 terminal HEPA is specifically referenced in pharmaceutical HVAC design guidance as the standard configuration for Grade A/B aseptic zones.
WHO GMP · EU Annex 1EN 779 / ISO 16890
EN 779 and ISO 16890 are the international standards for air filter classification and testing for general ventilation. All Metrolabs pre-filters and fine filters are classified and tested to ISO 16890 — the current standard replacing EN 779 since 2018 — with test certificates available for regulatory submission and facility validation documentation.
EN 779 · ISO 16890ISO 14644 & 21 CFR Part 11
ISO 14644-2 requires periodic environmental monitoring including HVAC filter status verification. The BMS DP trend data for pre-filter and fine filter stages constitutes 21 CFR Part 11-compliant electronic records of filter service history — satisfying FDA and ISO 14644-2 requirements without manual paper filter change records.
ISO 14644-2 · 21 CFR Pt11NABL & FSSAI
NABL ISO/IEC 17025 accreditation and FSSAI food facility licensing require documented HVAC maintenance records demonstrating that air supply filters are maintained and replaced in accordance with a validated schedule. Metrolabs BMS-integrated filter maintenance documentation satisfies both accreditation bodies’ requirements directly.
NABL · FSSAI · HACCPReady to Protect Your HEPA Investment with Tiered Filtration?
Contact Metrolabs for a free consultation. Our filtration specialists will assess your cleanroom AHU configuration, ISO class, particle load environment, and HEPA grade — then specify, supply, and install the complete G4 through F9 tiered filtration system with BMS DP monitoring and 21 CFR Part 11 documentation at handover.
