Cleanroom Sink Units — Aseptic Water Management for Sterile Zones
In any sterile facility, the hand-wash and equipment-cleaning station is a high-risk area for moisture-borne contamination and aerosol generation. Metrolabs cleanroom sink units are engineered to manage water usage while maintaining the absolute integrity of your controlled environment — Zero-Ledge design, non-aerated laminar flow, hands-free operation, and fully concealed plumbing that leaves no surface where contamination can accumulate or biofilm can form.
Why the Cleanroom Sink Is the Highest-Risk Contamination Point — and How to Engineer It Correctly
The hand-wash station introduces three contamination risks no standard sink can mitigate: re-contamination from faucet touch, aerosol generation from aerated water, and biofilm in sharp-cornered bowls. Metrolabs eliminates all three by design.
Hands-Free Operation — Preventing Post-Wash Recontamination
The fundamental contradiction in a standard cleanroom handwash station is that turning off the faucet after washing re-contaminates the just-washed hands — because the faucet handle is one of the most heavily contaminated surfaces in the room, touched by every person before and after washing. Infrared sensor faucets eliminate hand contact entirely — water starts when the sensor detects hands below the spout and stops when hands are withdrawn, with no mechanical contact at any point. Knee-operated lever panels provide a hands-free alternative for environments where electronic sensors are restricted — a mechanical stainless steel lever pressed with the knee activates the flow without any hand contact. Both systems ensure that the handwash SOP is completed without the washed hands touching any surface between washing and gowning.
Non-Aerated Flow — Preventing Contaminated Aerosol Generation
Standard faucet aerators — the flow-limiting mesh screens fitted to most tap spouts — mix the water flow with air, creating a turbulent stream that produces thousands of micro-droplets on impact with the bowl surface. In a cleanroom, any aerosol generation is a contamination risk — micro-droplets carry microorganisms or chemical contaminants from the water supply into the room air. Metrolabs cleanroom sink faucets use medical-grade gooseneck spouts without aerators — producing a smooth, laminar, non-aerated water stream that impacts the bowl without aerosol generation. The laminar stream also provides better handwash coverage and rinsing effectiveness at the specified SOP temperature.
Deep-Drawn Coved Bowl — No Biofilm Anchor Points
A right-angle corner inside a sink bowl is a biofilm incubation site — constant moisture, a nutrient supply from handwash soap residues, and physical protection from the water stream in the corner shadow create ideal conditions for microbial growth. Metrolabs sink bowls are deep-drawn from a single piece of SS 316L — pressed to shape in one forming operation producing a bowl with no internal welds, no joints, and no right-angle corners. All internal corners are a continuous R10 radius that the water stream can reach and the cleaning cloth can wipe through without repositioning. The electropolished surface (Ra <0.5μm) further inhibits biofilm adhesion by eliminating the microscopic surface roughness that micro-organisms anchor to.
Marine-Edge Anti-Drip — Water Containment at the Counter Perimeter
Standard sinks with flat counter surfaces allow water splashed onto the counter during handwashing to flow over the edge onto the cleanroom floor — a moisture contamination source and slip hazard. Metrolabs cleanroom sink units include a marine-edge — a raised perimeter bead on the counter surface forming a continuous liquid containment barrier around the entire counter. Any water on the counter is retained within the marine-edge boundary and drains back toward the bowl rather than over the edge. The marine edge is formed as an integral part of the counter during fabrication — not an applied strip that could corrode or delaminate.

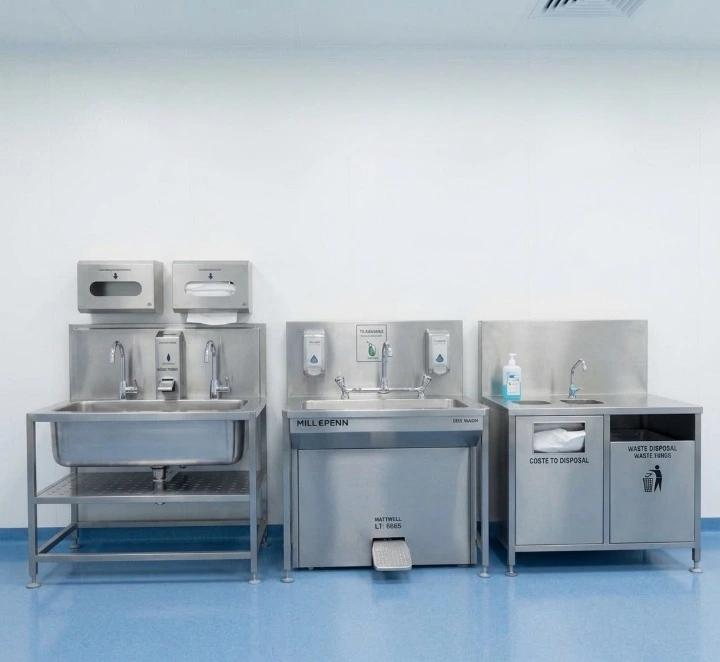

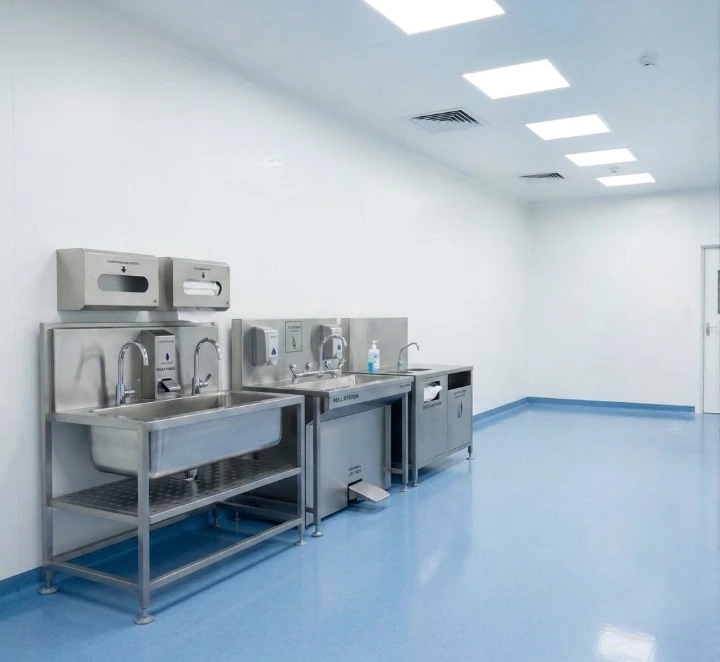

Four Specialised Sink Configurations — Workflow-Specific Cleanroom Wash Stations
Metrolabs customises sink units for the specific handwash, equipment-wash, and safety requirements of high-stakes sectors:
Surgical Scrub Sinks — Pre-Operative Deep-Scrub Configuration
Extra-deep (minimum 250mm), extra-wide (minimum 500mm) sink bays designed for the 3–5 minute pre-operative surgical scrub required before entry to OTs, sterile processing areas, and aseptic suites — where scrub duration and technique are significantly more demanding than a standard handwash. A deeper bowl prevents water splashing out during vigorous scrubbing; the wider width provides bilateral arm access without contact with bowl sides. An integrated nail-pick and scrub brush dispenser (SS 316L recessed pocket in the splashback) provides accessories at the point of use. Thermostatic mixing at 40–42°C — the validated temperature for effective microbial reduction during the scrub cycle. Available as single, double, or triple bay multi-station for high-throughput gowning areas.
Multi-Station Trough Sinks — High-Throughput Airlock Entry
Extended trough-format sink units (typically 1500–3000mm) providing simultaneous multi-person handwashing for high-traffic entry airlocks — pharmaceutical shift changeovers where 20–40 personnel must enter within 15 minutes, or surgical team scrubbing during pre-operative preparation. A single continuous deep-drawn SS 316L bowl spanning the full bay width, divided by internal radius-edged baffles at 600mm intervals to create individual wash positions without separate bowls or plumbing runs. Each station has its own infrared faucet, thermostatic flow, and elbow-operated soap dispenser. A single central rear drain handles all positions simultaneously — no inter-bowl joints.
Equipment Wash Sinks — Drainboards, Spray-Rinse & PW/WFI Rinse
Specialist sink units designed for cleaning and rinsing laboratory glassware, instruments, and equipment in cleanrooms. Key differences from handwash sinks: wider, deeper bowl (600–900mm width, 300mm depth) for large flasks and instrument trays; integrated SS drainboards on one or both sides (slope-drained, marine-edge contained) as staging areas for washed items; and an integrated spray-rinse unit — a flexible SS 316L hose with trigger-operated spray head for direct rinsing of complex glassware interiors. An optional purified water (PW) or water-for-injection (WFI) supply provides a final PW/WFI rinse at the same station, eliminating the need for a separate purified water rinse point in space-constrained cleanrooms.
Eye-Wash Integration — ANSI Z358.1 Emergency Safety Station
Chemical handling areas in cleanrooms require an emergency eye-wash station within 10 seconds travel distance (ANSI Z358.1, OSHA 29 CFR 1910.151). Metrolabs integrates a certified emergency eye-wash directly into the sink unit — dual SS nozzles at the correct ergonomic height (1040–1070mm above floor) with a push-and-stay activation handle delivering tepid water (16–35°C as required by ANSI Z358.1) for the full 15-minute eye-flush duration. The water supply connects to the same thermostatic mixing valve as the handwash faucet — no separate plumbing required. Protective dust covers on nozzles (automatically removed on activation) prevent cleanroom contamination of nozzle orifices between emergency uses. Add-on to any Metrolabs sink configuration without additional plumbing runs.

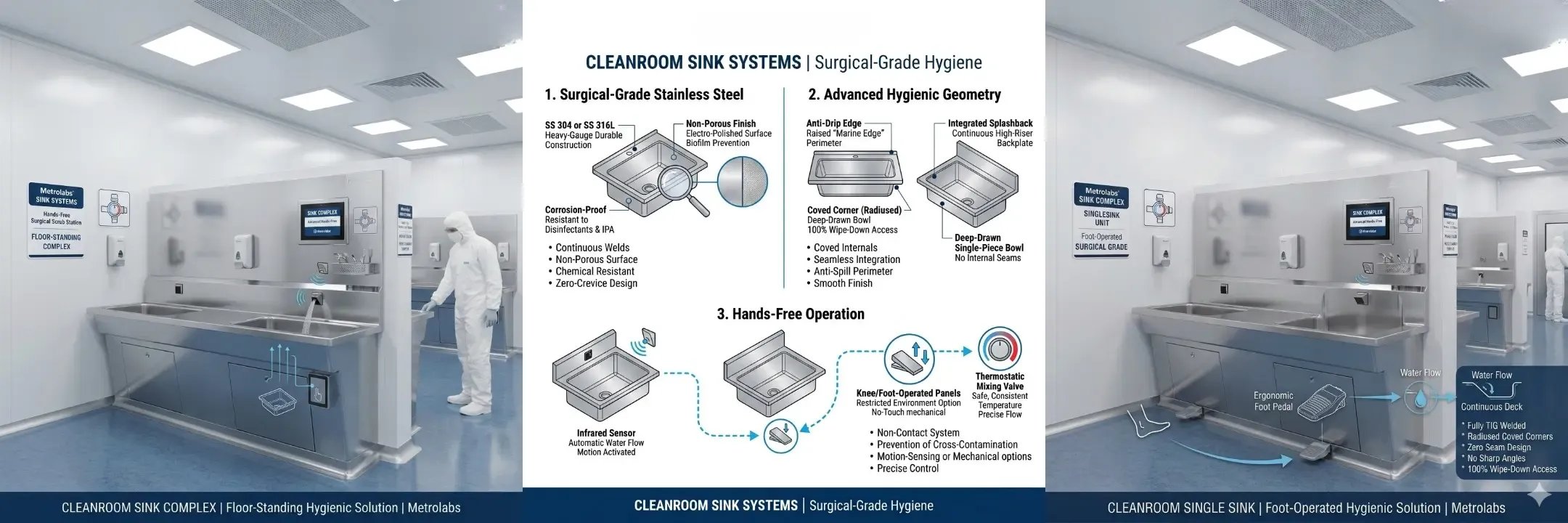

Six Precision Engineering Features of Every Metrolabs Cleanroom Sink
Every Metrolabs cleanroom sink unit is built to these standards — making it a structural component of the facility’s hygiene programme rather than a plumbing fixture placed inside a controlled environment:
SS 316L Construction — Surgical-Grade Throughout
The entire sink unit — bowl, counter, splashback, faucet body, knee-lever panel, soap dispenser housing, plumbing shroud, and wall bracket — is SS 316L throughout. No SS 304 in wet contact zones, no chrome-plated fittings (which corrode and shed particles under constant moisture), no plastic in the sink body or faucet housing. SS 316L is specified because the combination of chloride-containing disinfectants, organic acid soap residues, and constant temperature cycling from hot and cold water is aggressively corrosive to SS 304 — the molybdenum addition in SS 316L provides the pitting corrosion resistance needed for the cleanroom sink environment. Post-fabrication: IPA degreased and ASTM A967 citric acid passivated. Passivation certificate supplied for IQ documentation.
Thermostatic Mixing Valve — Consistent SOP Temperature
The thermostatic mixing valve blends hot and cold water supplies to deliver a specified mixed temperature — typically 38–40°C for effective handwashing — regardless of incoming supply pressure variations. This allows the handwash SOP to specify water temperature as a controlled parameter and prevents the thermal shock hazard where a hot supply pressure variation momentarily delivers scalding water. The TMV is a pressure-balanced type with an anti-scald failsafe — if cold supply fails, the valve automatically closes rather than allowing scalding water to flow. All thermostatic valves are housed within the concealed plumbing shroud — accessible for maintenance without exposing the cleanroom to plumbing disruption.
Fully Concealed Plumbing — SS 316L Shroud
All hot and cold supply pipes, the TMV, drain pipe, S-trap, and isolation valves are housed within a close-fitting SS 316L shroud covering the entire under-sink space from bowl base to floor. The shroud exterior surface is smooth, continuous, and wipeable — no exposed pipes collecting dust and scale, no brackets creating particle traps. The shroud is designed for maintenance access — one or two removable panels operated by a single-handed quarter-turn fastener, without tools, allowing full plumbing access without disturbing the sink unit. No adhesive, silicone, or foam is exposed on the shroud exterior — all edges are SS-to-SS mechanical joins.
Acoustic Damping — Non-Shedding Bowl Treatment
An untreated SS bowl produces significant impact noise when the water stream or items strike the bowl surface — vibration transmitted through the sink structure to wall panels, creating noise that can distract precision operations and in some cases affect sensitive instruments near the sink. Metrolabs treats the underside of every sink bowl with non-shedding closed-cell acoustic damping pads — bitumen-free acoustic compound specified to be non-shedding (zero particle contribution through the wall), non-outgassing (no VOC release into room air), and moisture-resistant. Acoustic testing confirms a minimum 10 dB reduction in impact noise transmission through the bowl and its supporting structure.
Wall-Hung or Floor-Mounted — Full Cleaning Access
Wall-hung mounting — the unit is mounted on SS 316L heavy-duty wall brackets bolted to the panel structural frame, with the base a minimum 300mm above the floor — provides full floor cleaning access below the sink without moving the unit. The floor area under the sink can be cleaned with a standard mop or scrubber-dryer in a single pass. Floor-mounted sinks — for high-load applications or where wall load capacity is limited — use adjustable SS levelling feet with the shroud base sealed to the floor perimeter with pharmaceutical-grade silicone. Both mounting options maintain the full continuous integrated splashback seal to the wall panel — the wall-sink junction is always sealed and wipeable.
VHP Compatible — IP54 Sensor Rating
Every external surface of the sink unit — bowl, counter, splashback, plumbing shroud, faucet body, and infrared sensor housing — is specified for VHP compatibility at 1000 ppm for standard pharmaceutical VHP cycle durations. SS 316L body and EPDM or PTFE internal plumbing seals maintain integrity through 500+ VHP cycles. The infrared sensor faucet is IP54-rated — protected against spray water and condensation — and sealed against VHP penetration into the sensor electronics. The knee-lever mechanism uses a stainless cable-and-pulley system with no electronic components — making the knee-operated variant inherently VHP-compatible without special sealing. For rooms with regular VHP programmes, Metrolabs recommends specifying the knee-lever as an additional redundancy measure.
Metrolabs Cleanroom Sink Unit — Technical Standards
Every Metrolabs cleanroom sink unit is fabricated, finished, and documented to these technical parameters:
| Feature | Metrolabs Standard | GMP / Hygiene Benefit |
|---|---|---|
| Material | SS 316L — all wet contact surfaces | Chloride-resistant — biofilm-inhibiting EP finish |
| Bowl Construction✓ Std | Deep-drawn single-piece — R10 coved | No internal joints — no biofilm anchor points |
| Faucet Operation | Infrared sensor or knee-lever | Zero hand contact — no post-wash recontamination |
| Water Flow | Non-aerated laminar — gooseneck spout | No aerosol generation — no airborne microorganism spread |
| Temperature Control | Thermostatic mixing — 38–40°C | Consistent SOP temperature — anti-scald failsafe |
| Marine Edge | Integral raised perimeter — all sides | No floor water spillage — contained on counter |
| Plumbing | Fully concealed — SS 316L shroud | No exposed pipes — no dust accumulation points |
| Acoustic Damping | Non-shedding closed-cell pads — bowl underside | 10dB impact noise reduction — zero particle shedding |
Cleanroom Sink Units Across Every Regulated Sector
Hands-free, aerosol-free, and GMP-documented wash stations for every cleanroom where aseptic hygiene is non-negotiable:
Pharmaceutical GMP
SS 316L cleanroom sink units in Grade B/C gowning anterooms. Infrared or knee-operated faucets. Thermostatic mixing at scrub-compliant temperature. VHP exterior compatible for room-wide cycles.
Aseptic Manufacturing
Surgical scrub sinks in Grade A/B aseptic suite gowning. Multi-bay for shift-change throughput. Non-aerated gooseneck faucets to prevent aerosol generation at the cleanroom entry corridor.
Hospital & OT
Pre-operative scrub sinks in OT gowning and CSSD. Multi-station troughs for surgical team scrubbing. Eye-wash integration for chemical handling areas. NABH compliant throughout.
Biotech & ATMP
SS 316L cleanroom sinks in ATMP and gene therapy GMP suites. Knee-operated option for VHP-sensitive environments. Equipment wash with spray-rinse for biological process vessel rinsing.
Research Laboratories
Equipment wash sinks with spray-rinse for NABL-accredited labs — glassware and instrument cleaning. PW/WFI final rinse integration for chemistry and biology labs requiring purified water wash.
BSL Containment
SS 316L cleanroom sinks in BSL-2 and BSL-3 gowning. Eye-wash integration mandatory ANSI Z358.1. Knee-lever standard — no electronics damaged by biocide exposure in containment decontamination.
Electronics Cleanrooms
SS 316L sink units for semiconductor and electronics cleanrooms — DI water supply integration for equipment rinsing. Anti-static earthing on faucet body for ESD-sensitive environments.
Food & Beverage
SS 316L sinks for FSSAI high-care food production handwash stations. Non-aerated faucets reduce aerosol in food contact areas. Marine-edge prevents cleanroom floor slip hazard from water spillage.
Long-Term Performance — Where Even the Plumbing Is Cleanroom-Compatible
Metrolabs ensures that even the plumbing is cleanroom-compatible — the sink unit is a complete, sealed, documented utility infrastructure, not a standard fitting with a stainless bowl:
Custom Dimensions — Exact Bay and Wall Position
Metrolabs fabricates sink units to the exact bay width and mounting height of the installation position — custom bowl widths from 350mm to 1200mm, counter depths from 400mm to 600mm, and heights matched to the panel dado rail. Bespoke dimensions ensure the splashback sits flush with the panel surface and the counter aligns with adjacent worktables, creating a seamless wall surface across the full cleanroom width.
Clean Plumbing — No Jointing Compound or Hemp
Metrolabs specifies push-fit or compression fittings for all concealed plumbing connections — eliminating the hemp, jointing compound, and PTFE tape that traditional plumbing uses and that can introduce organic contamination into the water system. The S-trap uses a smooth-bore push-fit connection that prevents sewer gas backflow and is easily removable for cleaning without disturbing the sink unit.
Material Test Certificates at Delivery
Every Metrolabs cleanroom sink unit is supplied with an SS 316L mill test certificate (MTC) and ASTM A967 passivation certificate, plus the thermostatic valve compliance certificate and infrared sensor IP54 rating certificate — a complete documentation suite for inclusion in the facility IQ documentation at handover.
Recessed Soap & Sanitiser Dispensers — No Counter Clutter
Optional recessed SS 316L soap and sanitiser dispensers factory-installed in the splashback — elbow-operated or sensor-operated. Recessed installation keeps the dispenser face flush with the splashback — no protruding body accumulating dust or soap residue on a horizontal ledge, and no freestanding bottle on the counter creating a contamination risk from the bottle exterior surface.
Cleanroom Sink vs Standard Laboratory Sink
From Plumbing Survey to Installed & IQ-Documented Cleanroom Sink
Metrolabs manages the complete sink unit supply and installation process — from plumbing survey through fabrication, installation, and IQ documentation:
Plumbing Survey & Design
Hot and cold supply routes, drainage positions, wall panel structural frame, and soap dispenser positions confirmed. Faucet type (infrared/knee), mounting (wall-hung/floor), bowl dimensions, splashback height, and plumbing shroud configuration specified. Dimensioned drawing produced and signed off.
Precision Fabrication
Bowl deep-drawn from SS 316L sheet — R10 coved. Counter and splashback TIG welded. Marine edge formed. Plumbing shroud fabricated. Acoustic damping applied bowl underside. Faucet and thermostatic valve factory-installed. IP54 infrared sensor fitted. Electropolishing and ASTM A967 passivation. MTCs issued.
Installation & Plumbing
Sink mounted at specified height. Splashback sealed to wall panel — pharmaceutical-grade silicone. Hot and cold supplies connected via push-fit or compression fittings. S-trap drain connected. TMV calibrated to 38–40°C. Infrared sensor range-tested. All functions verified. Soap dispenser fitted and tested.
Documentation & IQ
Dimensions, material certs, passivation certs, TMV calibration record, infrared sensor test record, IP54 cert, acoustic test record, installation photos, sealant record, and plumbing test records compiled as sink unit IQ documentation for GMP facility validation submission.
Cleanroom Sink Units Compliant with Every Major GMP & Safety Standard
WHO & EU GMP
WHO GMP and EU Annex 1 require cleanroom hand-wash facilities that prevent cross-contamination. Hands-free infrared or knee-operated faucets, non-aerated flow, and coved SS 316L bowls satisfy all WHO GMP and EU Annex 1 handwash facility requirements for pharmaceutical manufacturing grades B through D.
WHO GMP · EU Annex 1ISO 14644-4
ISO 14644-4 requires cleanroom utility equipment to be compatible with cleaning and decontamination methods. SS 316L, concealed plumbing, and VHP exterior compatibility satisfy ISO 14644-4 utility equipment requirements. Wall-hung mounting with floor clearance supports floor cleaning access requirements for utility-point positions.
ISO 14644-4ANSI Z358.1 — Eye-Wash
Where eye-wash integration is specified, Metrolabs designs to ANSI Z358.1 — the international emergency eye-wash standard. Requirements include tepid water (16–35°C), within 10 seconds travel, minimum 15-minute flush duration, and self-stay activation. All ANSI Z358.1 requirements are integral features of the eye-wash design, not retrofitted add-ons.
ANSI Z358.1 · OSHANABH & 21 CFR
NABH hospital accreditation requires hands-free and non-aerated cleanroom sink facilities in OT and pharmacy. Metrolabs infrared and knee-operated units meet NABH requirements. ASTM A967 passivation and material test certificates satisfy US-FDA 21 CFR pharmaceutical equipment construction documentation for facility qualification submissions.
NABH · ASTM A967 · 21 CFRFactory & Office
