L-Shape Cleanroom Work Tables
In a controlled environment, every square inch of floor space is critical infrastructure. Metrolabs L-Shape cleanroom work tables transform underutilised corner zones into productive, sterile, high-efficiency workspaces — wrapping around the room perimeter in a seamless, fully TIG-welded uni-body structure that integrates perfectly with your modular cleanroom panels and delivers an expansive, continuous worksurface without sacrificing an inch of floor area.
Why the Corner Is the Most Critical Engineering Challenge in an L-Shape Table
The corner transition is where most L-shape cleanroom tables fail — introducing contamination risks, structural weakness, or airflow dead zones that negate the space efficiency advantage. Metrolabs eliminates all three through precision corner engineering.

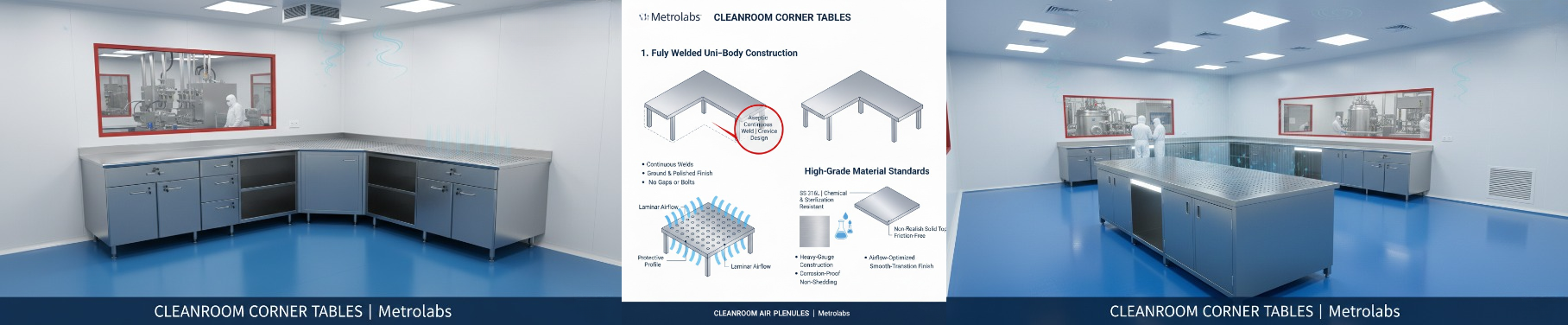

Fully Welded Uni-Body Construction — Zero Modular Joints
Standard L-shape laboratory benches use a modular construction approach — two separate rectangular bench sections bolted together at the corner with a connecting plate and cover strips. This creates multiple contamination pathways: the bolted face-to-face junction harbours particles and moisture in an inaccessible crevice, the corner cover strip creates a ledge, and the bolted connections loosen from vibration and shed metallic particles. Metrolabs L-shape tables are fabricated as a single uni-body structure — the two arms are welded together at the corner junction with a full penetration TIG weld that is then ground flush with the surrounding metal and progressively polished to match the worksurface finish. The result is a single continuous surface across the corner transition — indistinguishable from the rest of the worksurface in material, finish, and cleanability.
Maximum Corner Space Utilisation — Continuous Workflow
The corner zone of a rectangular cleanroom is the most difficult space to use productively with wall-side tables — two separate tables meeting at a corner leave a triangular dead space where the table ends do not meet, and this dead space accumulates particles, becomes a cleaning obstacle, and is a common GMP finding in facility inspections. The L-shape table eliminates this dead space by occupying the full corner zone with a continuous, productive worksurface that wraps from one wall arm to the other without interruption. Multi-stage processes can flow continuously from one arm to the other — weighing on one arm, dilution preparation on the other, with the corner zone used for buffer staging — without the operator needing to move position between process steps.
Perforated Corner Section — No Airflow Dead Zone
The corner zone is the area most susceptible to airflow dead zones in an L-shape cleanroom installation — the two walls meeting at 90° create a low-velocity zone behind the corner of the table where the laminar piston from the HEPA filters above cannot efficiently sweep particulates toward the return air risers. Metrolabs L-shape tables address this by extending the perforated surface through the corner section — the perforation pattern continues across the full corner area, allowing the laminar airflow to pass through the corner zone and maintain the downward sweep toward the floor-level risers that are positioned behind the table at 50mm clearance from both wall arms.
50mm Wall Clearance — Return Air Riser Access Preserved
Metrolabs L-shape tables are positioned with a deliberate 50mm clearance from the wall panel surface on both arms — a design choice specified in the engineering insight from the source data and standard in GMP cleanroom furniture design. This 50mm gap serves three functions: it allows the floor-level return air risers behind the table to draw air from the room without being obstructed by the table backing plate; it allows effective air circulation between the table rear and the wall to prevent stagnant zones; and it provides space for the cleaning team to wipe down the rear face of the table and the adjacent wall panel during routine cleaning operations.
Two Worksurface Options for Every ISO Class
Both worksurface options are available across all sections of the L — horizontal arm, vertical arm, and the corner zone — in a continuous, unbroken pattern matched to your ISO class and airflow regime:
Solid Top — Mirror / Hairline / Electropolished
A single-piece continuous SS 304/316L solid worksurface across both arms and the corner — no seams, no joints, no surface breaks at the corner transition. The smooth, flat surface provides the most stable instrument housing platform — critical for L-shape tables configured with analytical instruments on one arm and documentation workstations on the other, where instrument base contact must be maximised. The High-Polish solid top — mirror polished or electropolished to Ra <0.4μm — provides a friction-reduced surface for sliding instruments across the L transition without lifting, minimising handling-related contamination events in ISO Class 7–8 cleanrooms. All solid top L-shape tables include an integrated 90° backsplash riser that wraps continuously from one arm end to the other, including around the corner, in the same material and finish as the worksurface.

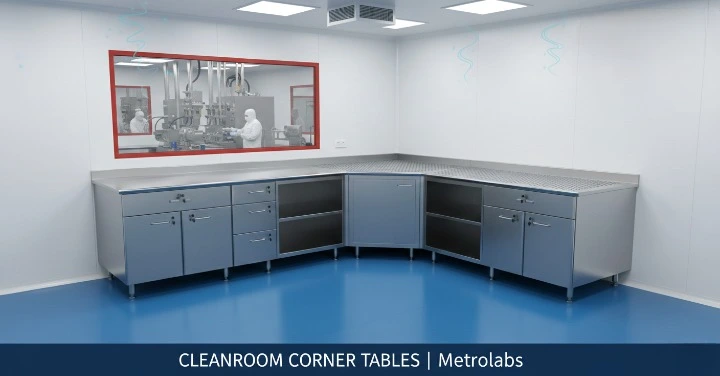

Perforated Top — Laser-Cut ∅25mm on 45mm Pitch
The Grade A and B standard — precision laser-cut perforated SS 304/316L worksurface across both arms and the corner section, allowing vertical laminar airflow from the ceiling HEPA to pass through the work plane unimpeded throughout the full L configuration. Critically, the perforation pattern is maintained continuously through the corner section — the most challenging area to perforate consistently because the corner zone requires a radiused or mitre-joined worksurface section that must mate precisely with the arm perforations on both sides. Metrolabs corner perforated sections are laser-cut as a single piece in the corner geometry required — with the perforation pattern maintained at the same ∅25mm / 45mm pitch throughout, ensuring no discontinuity in the laminar piston as the airflow passes through the corner zone. Available electropolished Ra <0.5μm for Grade A/B aseptic applications.
Six Precision Engineering Features
Every Metrolabs L-shape cleanroom work table is built to these precision engineering standards — specific to the challenges of corner-mounted cleanroom workstations:

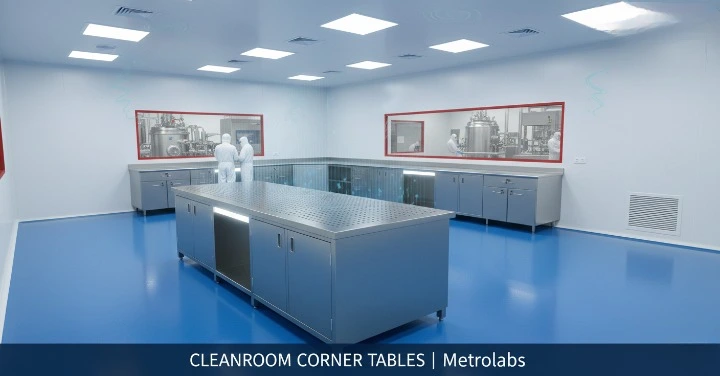

Full Penetration TIG Corner Weld — Ground Flush & Polished
The corner weld is the most critical fabrication point in an L-shape table — it must achieve full structural continuity between the two arms, full surface continuity across the worksurface (no step, no shadow line, no material discontinuity at the joint), and zero-crevice at the joint (no gap, no underfill, no interstitial space where contamination can accumulate). Metrolabs achieves this through a multi-pass TIG welding process: the first pass achieves full root penetration, the second and third passes build the weld to the full joint face, and post-weld grinding in progressive grits (80→120→240→400→mirror) brings the weld face to the same surface finish as the surrounding worksurface. The result is a corner transition that is invisible in material and finish — no raised weld bead, no discoloured heat zone, no detectable junction between the two arms.
Custom Inner Corner Radius — Zero Right-Angle Trap
The inner corner of an L-shape table — the concave 90° angle where the two arms meet on the operator side — is the most particle-accumulating location in the entire table. A sharp right-angle inner corner is impossible to fully clean with a wipe — the wiping action deposits material in the corner rather than removing it. Metrolabs provides an optional custom inner corner radius (R50mm to R300mm, specified by the customer) — a smooth, curved transition between the two arm faces that eliminates the right-angle particle trap. The inner radius is fabricated in the same material and finish as the worksurface, with a continuous weld at the interface, and provides unobstructed personnel movement in the corner zone during operation and cleaning. A larger radius (R200–300mm) also improves ergonomic reach access to the corner zone of the worksurface.
Continuous 90° Integrated Backsplash — Full L Perimeter
The integrated backsplash riser on an L-shape table must wrap continuously from one arm end to the other — including around the back of the corner — without interruption, joint, or gap at any point along the L perimeter. Metrolabs fabricates the backsplash as a single formed SS 304/316L component that follows the L geometry of the table top — the corner of the backsplash is bent at 90° and welded to the worksurface at the corner transition, maintaining the same coved R10 junction between the worksurface and the backsplash throughout. The backsplash is 50mm standard (100mm optional) and sealed to the wall panel surface with pharmaceutical-grade silicone at both arm ends and along the full rear face — preventing liquid or particle migration behind the table.
H-Bracing Leg Structure — Stability Without Legroom Loss
An L-shape table presents a structural challenge — the corner zone must be supported from above but the leg positions must not obstruct the under-table knee space on the operator side. Metrolabs uses an H-bracing configuration: vertical legs are positioned at the outer perimeter of each arm (away from the operator access side), connected by a horizontal H-brace that runs parallel to the wall at mid-height between the legs. This H-brace provides lateral stability to the leg structure without requiring legs in the inner corner zone where they would obstruct personnel movement. The leg positions are calculated from the table dimensions and load rating to ensure the worksurface UDL is met at all positions, including the corner zone which typically carries the highest point loads from equipment weight concentrations. All legs are 50×50mm SS 316L square tube, fully TIG welded to the top frame with encapsulated stainless levelling feet.
Integrated Utility Cut-Outs — Airtight Cable Management
L-shape tables used for QC workstations, computer-integrated analytical setups, and multi-instrument configurations require multiple utility connections — power, data, gas, vacuum — and the routing of these connections is more complex in an L-shape than a straight table because services from both arms must be accessible without conflicting with the corner zone. Metrolabs integrates airtight SS 304 cable grommets in the worksurface at the agreed positions on both arms, with split silicone plugs that seal around each cable and maintain worksurface airtightness. Gas taps and power sockets (IP54 SS 316L flap-cover) are factory-installed in the backsplash at the specified positions on each arm — keeping services on the vertical back face rather than cutting into the worksurface plane.
Adjustable SS Bullet Feet — Anti-Vibration Option
L-shape tables rest on the same encapsulated SS levelling feet used across the Metrolabs workstation range — a smooth-bore SS cylinder housing a threaded adjustment bolt, with a flat SS 316L base disc providing full-face floor contact without point loading that indents vinyl cleanroom flooring. The four to six levelling feet (depending on arm lengths) are individually adjustable from above the foot housing — the commissioning technician achieves worksurface level across the full L with a precision spirit level, compensating for floor gradient variations across the larger floor footprint of an L-shape installation. For tables housing balances or vibration-sensitive instruments on one or both arms, natural rubber anti-vibration isolators are available as factory-fitted upgrades — the isolation frequency is calculated from the combined mass of the table and expected instrument load.
Metrolabs L-Shape Table — Technical Standards
Every Metrolabs L-shape cleanroom work table is fabricated, finished, and documented to these technical parameters:
| Feature | Metrolabs Standard | Cleanroom Benefit |
|---|---|---|
| Grade A/B Material | SS 316L electropolished | Max corrosion resistance — VHP & chloride rated |
| Grade C/D Material✓ Std | SS 304 passivated | IPA / QAC / PAA compatible — cost-effective |
| Corner Weld | Full penetration TIG — ground flush | Zero crevice — single continuous surface |
| Surface Finish | EP Ra<0.5μm / Mirror / Hairline | Biofilm inhibiting — cleaning validation simplified |
| Perforated Top | ∅25mm / 45mm pitch — corner continuous | No airflow dead zone at corner — Grade A throughout |
| Backsplash | Single-piece 90° continuous — R10 | No joint at corner — sealed to wall full perimeter |
| Inner Corner Radius | R50–R300mm (custom) | No particle trap — improved ergonomic reach |
| Load Bearing | Reinforced sub-frame — 250kg UDL | Supports heavy instruments at corner zone |
L-Shape Cleanroom Tables Across Every Regulated Sector
Corner-optimised L-shape workstations for every cleanroom where space efficiency, multi-stage workflow, or dual-zone operation demand the L configuration:
Pharmaceutical GMP
SS 316L EP perforated L-shape tables for pharmaceutical filling and packaging rooms. U-turn workflow for compact rooms — one arm for filling, one arm for packaging, zero dead space at the corner zone.
Microbiology Research
L-shape tables providing separate clean and prep zones within one continuous workstation. One arm for aseptic transfer — the other for media preparation and documentation.
Quality Control Labs
Solid SS 304 L-shape tables with one arm for computer and documentation, the other for analytical instruments. Corner zone for reference standards and reagent staging.
Electronics Assembly
ESD-rated L-shape tables maximising the reach zone for technicians — components on one arm, assembly on the other, inspection equipment at the corner. Anti-static surface options.
Biotech & ATMP
SS 316L EP L-shape tables for ATMP cleanrooms — cell culture handling on one arm, instrument and documentation on the other. VHP-rated for room-wide decontamination programmes.
Hospital Pharmacy
SS 316L L-shape compounding tables for hospital cleanroom pharmacies — preparation on one arm, checking and labelling on the other. Continuous backsplash wrapping the full perimeter for spill containment.
Food & Beverage
SS 316L L-shape tables for FSSAI high-care food production — portioning on one arm, packaging and labelling on the other. Antimicrobial surface treatment option. Full wet wash-down compatible.
NABL Research Labs
SS 304 L-shape tables for NABL testing labs — large instrument platforms with the corner zone used for sample staging. Full material test certificates and passivation documentation supplied.
High-Accuracy Ergonomics — The Furniture Works for the Operator
Metrolabs L-shape tables are custom-sized to the room’s specific corner dimensions — ensuring both arms utilise the full available wall length, the inner corner radius is optimised for the operator reach zone, and the table integrates with the wall panel system without gaps or overhang:
Custom Corner-to-Corner Dimensions
Metrolabs surveys the cleanroom corner — measuring both wall lengths, the wall-to-wall corner dimension, any panel joint positions, and the locations of return air risers — then fabricates the L-shape table with arm lengths that maximise worksurface area within the available corner space while maintaining the 50mm rear clearance from both walls. No standard catalogue size is used — every L-shape table is a custom fabrication to the drawn dimensions of the specific corner it occupies.
Zero-Shedding Quality — Degreased & Passivated at Dispatch
Every Metrolabs L-shape table is degreased with IPA to remove all fabrication-related surface contamination (cutting oils, grinding compound, handling deposits) and citric acid passivated (ASTM A967) to restore the full corrosion resistance of the passive chromium oxide surface layer — before it is packaged and dispatched. The table arrives at the cleanroom site ready for immediate installation in an ISO-classified zone, without the degreasing or cleaning treatment that would be required if the table were delivered in an unpassivated fabrication-fresh condition.
Panel-Integrated Design — Seamless Clean Shell
When supplied as part of a complete Metrolabs cleanroom furniture package, the L-shape table dimensions, backsplash height, and panel interface are coordinated with the modular cleanroom panel system — the backsplash matches the panel joint grid, the table height matches the panel dado rail position, and the sealant bead at the table-to-panel junction is applied by the same installation team that installed the panels. The result is a unified, continuous clean shell appearance where the furniture and wall systems appear as a single integrated surface.
Integrated Utilities — Organised & Sterile
Optional airtight cut-outs for power, data, and gas lines are factory-planned and fabricated — not site-drilled after delivery — ensuring that every utility penetration is precision-machined with a smooth bore, fitted with an airtight SS 304 grommet housing, and sealed with a split silicone plug. Site-drilled utility holes compromise the cleanroom airtightness and leave burrs that shed metallic particles. Metrolabs factory utility integration eliminates both risks.
L-Shape vs Two Separate Wall-Side Tables
Custom-Built for Your Corner — Four Key Options
Metrolabs fabricates every L-shape table to the precise corner dimensions and configuration requirements of your cleanroom layout:
Bespoke Arm Lengths — Both Arms Custom-Sized
Each arm of the L is independently dimensioned to match the available wall length — the two arms do not need to be the same length. Metrolabs surveys the corner, measures both wall lengths, deducts the 50mm clearance from each wall, and fabricates the arms to the precise dimensions that utilise the full available wall space. Standard arm depth is 600mm or 750mm. Height is adjustable 700–900mm. The corner plan geometry can be a true 90° for standard cleanroom corners or a custom angle for non-orthogonal room layouts.
Custom Inner Corner Radius — R50 to R300mm
The inner corner radius eliminates the sharp 90° recess and improves both hygiene and ergonomics. A larger radius — R200 or R300mm — provides a broad, smooth curved transition that is fully wipe-clean in a single continuous wiping motion, and allows the operator standing at the corner to reach the full worksurface area of both arms without body contact with a sharp corner projection. Metrolabs fabricates the inner radius as a continuous curved SS 304/316L section in the same material and finish, with a full-penetration TIG weld at each interface with the arm face.
Dual-Zone Surface — Mixed Perforated & Solid
For L-shape tables where one arm houses instruments (requiring a solid base) and the other serves as an open-work prep zone (requiring perforated surface for Grade A laminar preservation), Metrolabs fabricates a dual-zone surface — solid SS 316L on the instrument arm, perforated on the prep arm, with the corner zone in either configuration based on the room ISO class. The transition between zones is a clean, continuous weld with no surface step or gap. Solid SS insert plates are available for specific instrument positions within a perforated arm.
Under-Table Storage on One Arm — GMP Compliant
One arm of the L-shape table can be configured with integral under-table SS 316L storage cupboards — providing enclosed, GMP-compliant storage for consumables, PPE, and documentation at the point of use without requiring a separate storage unit. Cupboard tops are sloped at 30° (GMP compliance — no above-cupboard storage surface). The opposite arm retains the open-frame structure for floor cleaning access and return air riser clearance. Cupboard doors use flush-recessed handles, concealed hinges, and magnetic catches. Adjustable perforated SS 316L shelves. Lockable option for controlled substance storage.
From Corner Survey to Installed & IQ-Documented L-Shape Workstation
Metrolabs manages the complete L-shape table supply and installation process — from corner survey through custom fabrication, installation, and IQ documentation:
Corner Survey & Design
Both wall lengths measured precisely. Return air riser positions confirmed. Arm lengths, depths, inner corner radius, surface type, backsplash height, utility positions, and inner corner radius specified. Dimensioned drawing produced and signed off by customer before fabrication.
Uni-Body Fabrication
Both arms and corner section fabricated as single TIG-welded structure. Corner weld multi-pass completed and progressively ground to match worksurface finish. Perforations laser-cut continuous through corner. Backsplash formed and welded continuously. Electropolishing / passivation completed. MTCs and passivation certs issued.
Installation & Sealing
Table positioned at 50mm from both walls. Levellers adjusted — worksurface level confirmed across full L. Backsplash sealed to wall panels with pharmaceutical-grade silicone full perimeter. Utility connections made and tested. Under-table clearance and riser access confirmed.
Documentation & IQ
Arm dimensions, corner geometry, material certs, passivation certs, levelling records, sealant application records, utility test records, and installation photos compiled as L-shape table IQ documentation for GMP facility validation submission.
L-Shape Tables Specified to Every Major Cleanroom Standard
WHO & EU GMP
WHO GMP and EU Annex 1 require pharmaceutical cleanroom furniture to be smooth, non-porous, impervious, and easy to clean — with no horizontal ledges or crevices. The TIG-welded corner, R10 coved junctions, and 30° sloped storage tops of Metrolabs L-shape tables satisfy all four requirements with material and passivation documentation.
WHO GMP · EU Annex 1ISO 14644-4
ISO 14644-4 requires cleanroom furniture surfaces to be compatible with cleaning and decontamination. SS 304/316L, full TIG construction, and ASTM A967 passivation satisfy ISO 14644-4 material and surface requirements for ISO Class 3–8 applications. The 50mm wall clearance ensures return air riser compliance per ISO 14644-4 airflow design requirements.
ISO 14644-4ASTM A967 & 21 CFR
ASTM A967 passivation and SS mill test certificates supplied with every table satisfy US-FDA 21 CFR pharmaceutical equipment construction documentation requirements. The L-shape table IQ package is structured for direct inclusion in facility validation submissions for US-FDA inspected pharmaceutical manufacturing sites.
ASTM A967 · 21 CFRNABL & COSHH
NABL ISO/IEC 17025 equipment material documentation satisfied by MTCs and passivation certificates. Chemical storage arm configurations comply with COSHH flammable reagent storage regulations. Zero-shedding passivated delivery ensures compliance with ISO-classified zone entry requirements from day one.
NABL · COSHH · OSHAReady to Install Precision-Built L-Shape Tables in Your Cleanroom Corner?
Contact Metrolabs for a free consultation. Our cleanroom furniture specialists will survey your corner dimensions, specify the correct arm lengths, surface type, inner corner radius, and utility integration — then fabricate, supply, install, and document your L-shape workstation with full IQ documentation at delivery.
