Cleanroom Foot-Operated Sink Units — Mechanical Hands-Free Hygiene for Sterile Zones
In high-stakes sterile environments, hands-free operation is not a convenience — it is a contamination-prevention protocol. Metrolabs foot-operated sink units eliminate all hand contact with the faucet system through a precision-engineered mechanical spring-loaded foot pedal, delivering the same post-wash aseptic integrity as an infrared sensor faucet — with zero electronics, zero power dependency, and zero vulnerability to sensor interference in challenging cleanroom environments.
Why Foot-Operated Faucet Control Is the Most Reliable Hands-Free System in a Cleanroom
Electronic infrared sensors provide excellent hands-free operation but introduce three dependencies that mechanical foot-operated systems eliminate entirely: power supply, sensor calibration, and immunity to environmental interference. Metrolabs foot-operated systems deliver every hygiene advantage of hands-free operation with the unconditional reliability of a mechanical system.

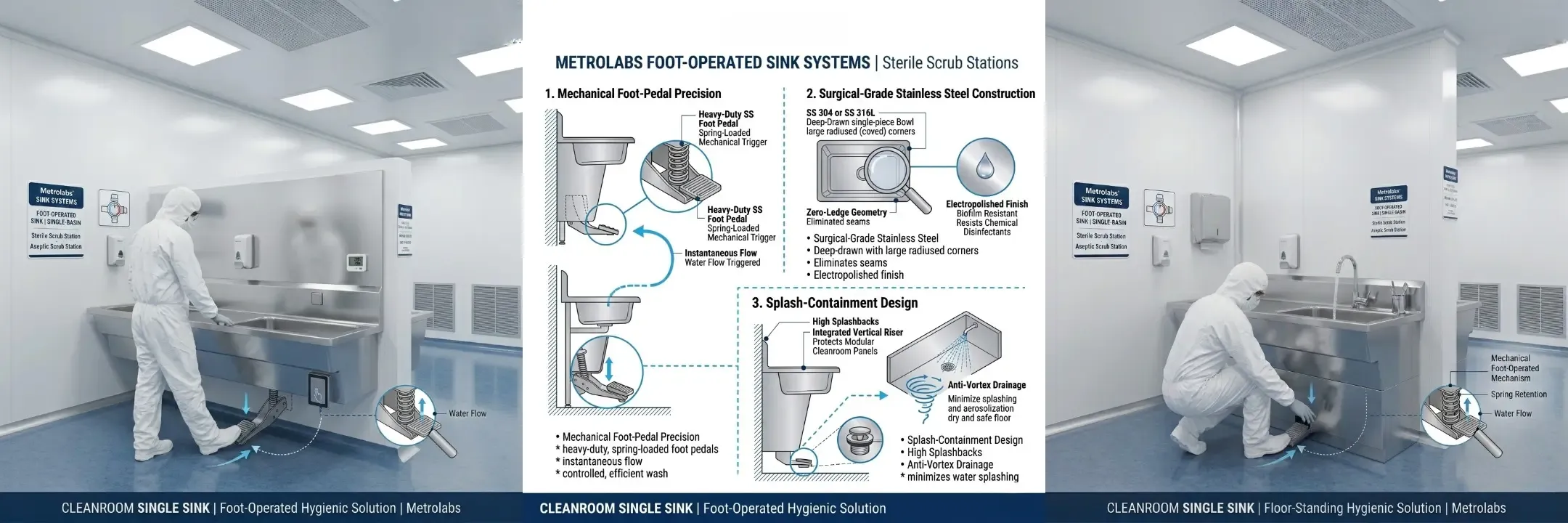

Spring-Loaded Kick-Pedal — Instantaneous, Calibrated Flow Control
The foot pedal assembly uses a heavy-duty stainless steel kick-plate mounted at the base of the unit, connected to the faucet valve via a stainless cable-and-pulley system — no plastic linkages, no rubber components in the mechanical path that can degrade. The pedal is spring-loaded — water flows the moment foot pressure is applied and stops immediately when pressure is released, with the spring returning the pedal to the closed position. This provides the user with direct physical control over flow start and stop — more responsive than waiting for a sensor timeout and equally effective for hands-free operation. The heavy-duty spring specification ensures the pedal mechanism maintains consistent return force across thousands of daily actuations without fatigue or drift.
No Electronics — Power-Independent, Interference-Free Operation
Infrared sensor faucets require power — either mains or battery — and can be affected by ambient lighting conditions, steam, fog, or very dark gowning materials that absorb IR radiation rather than reflecting it. In cleanrooms with VHP sterilization cycles, electronic sensor components require IP-rated protection against condensation. In facilities with frequent power interruptions — common in manufacturing sites — battery backup systems must be maintained. The foot-operated system eliminates every one of these dependencies: it operates without any electrical connection, is unaffected by any lighting condition, requires no battery maintenance, and is inherently VHP-compatible without any electronic enclosure protection. In critical handwash locations — OT gowning ante-rooms, ISO Class 5 gowning areas — the foot-operated system provides a contamination-prevention guarantee that does not depend on the state of any electrical supply or sensor component.
High-Arc Gooseneck Faucet — Full Forearm Scrub Access
Surgical scrubbing protocols require forearm washing — not just hand washing — with the arms held above the elbow to allow water to drain from fingertips to elbow without touching surfaces. Standard faucets are too low for forearm access — the scrubbing action requires raising the arm to the faucet height, which means the elbow passes above the faucet and may contact the arm during rinsing. Metrolabs foot-operated sink units use a high-arc gooseneck spout — the spout reaches a height and forward projection that provides unobstructed forearm-to-fingertip rinsing with the standard surgical scrub arm position. The gooseneck spout is medical-grade and non-aerated — producing a smooth, laminar flow that does not generate the micro-aerosols associated with aerated faucets, directly reducing the risk of airborne contamination from the wash station.
Anti-Vortex Drainage — Splash Containment at High Flow Rates
The deep-drawn coved bowl design addresses a specific challenge at foot-operated sinks — because the user controls flow with a foot rather than a hand, the tendency is to apply full pedal pressure for the full wash duration, producing a higher and more sustained flow rate than sensor faucets that typically deliver a metered flow. At high flow rates, the water stream impact on a standard drain can produce a rotating vortex that increases splashing onto the counter surface and potentially out of the bowl. Metrolabs configures the drain position and bowl geometry to direct water impact away from the drain centre, preventing vortex formation at full flow and containing splash within the marine-edge perimeter even at peak flow rates during high-pressure forearm scrubbing.
Four Foot-Operated Sink Configurations — Matched to Your Cleanroom Workflow
Metrolabs customises foot-operated sink units for the specific handwash, scrub, and safety requirements of each sector:

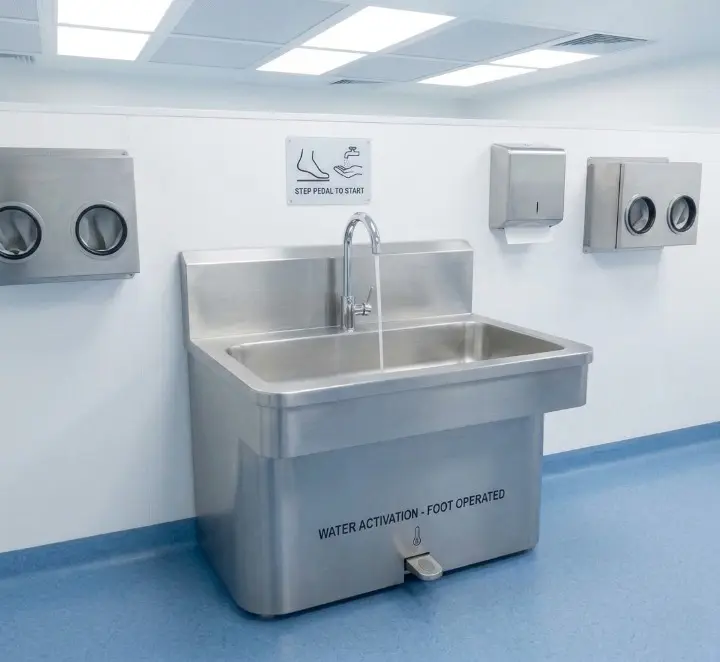

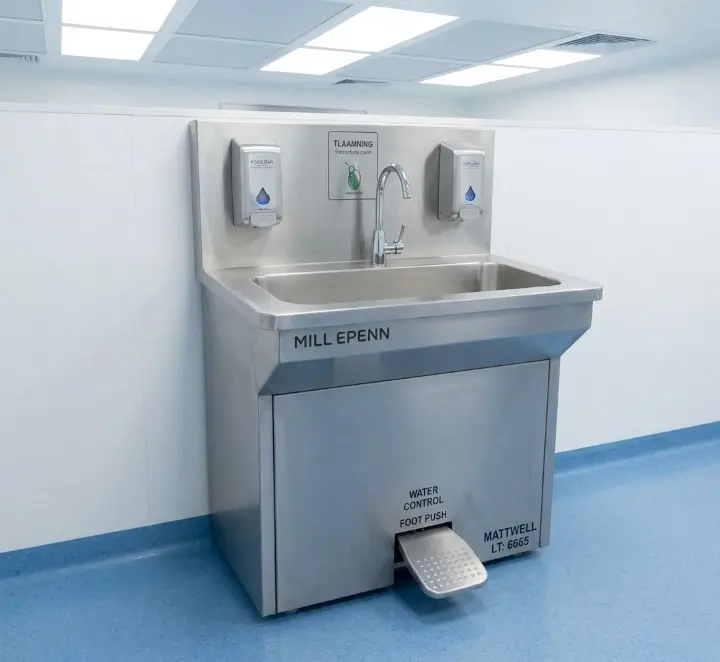

Single-Bay Foot-Operated Handwash — Standard GMP Gowning Entry
The core Metrolabs foot-operated sink unit — a single deep-drawn SS 316L bowl with a spring-loaded kick-pedal at the base, high-arc non-aerated gooseneck faucet, integrated 150mm splashback sealed to the wall panel, and marine-edge anti-drip perimeter. Thermostatic mixing valve in the concealed plumbing shroud maintains 38–40°C throughout the wash. Foot-operated soap dispenser mounted at splashback level — pressed with the elbow or back of hand immediately before scrubbing. This is the standard specification for Grade C and Grade D gowning anterooms, hospital OT gowning areas, and any cleanroom entry where the handwash SOP requires zero hand contact with faucet hardware throughout the entire wash cycle.
Multi-Station Foot-Operated Trough — High-Throughput Shift Change
Extended trough-format foot-operated sink units (1500–3000mm) for high-traffic shift-change airlocks where 20–40 personnel must hand-wash within a 15-minute window. A single continuous deep-drawn SS 316L bowl spanning the full bay, divided by internal radius-edged baffles at 600mm intervals. Each 600mm station has its own independent kick-pedal assembly — each user controls their own flow independently from the same trough. A single extended foot-operated soap dispenser rail runs the full width. Because all pedal mechanisms are mechanical, there is no risk of one station’s sensor triggering adjacent faucets — a known interference problem in multi-station infrared trough configurations. Central rear drain handles all stations simultaneously with anti-vortex drain fitting.
Deep Surgical Scrub — Extended Forearm Scrub Configuration
Specification for OT gowning areas and aseptic suite ante-rooms where the 3–5 minute pre-operative surgical scrub requires forearm access — not merely a handwash. Extra-deep bowl (minimum 250mm) prevents splash-out during vigorous forearm scrubbing; extra-wide (minimum 500mm) provides bilateral arm access without bowl contact. The foot pedal position is calibrated for full-duration pedal hold — the pedal is designed for sustained foot pressure rather than brief actuation, with ergonomic positioning that allows a surgeon or nurse to maintain foot contact on the pedal throughout a 5-minute scrub without strain. An integrated SS nail-pick and brush dispenser is recessed into the splashback. Thermostatic mixing at 40–42°C for the validated scrub protocol temperature. Available as single or double bay.
Foot-Operated with Eye-Wash Integration — ANSI Z358.1 Emergency Station
In chemical handling areas, a foot-operated sink unit with integrated ANSI Z358.1 emergency eye-wash provides a single unified emergency and routine hygiene station — without separate plumbing or wall space for a standalone eye-wash. The eye-wash activates via a separate push-stay handle (hand-activated for emergency use — the injured person will use their hand or arm to activate during an emergency, not their foot). Dual SS nozzles at 1040–1070mm above floor height deliver tepid water at 16–35°C for the full 15-minute flush duration, drawing from the same thermostatic mixing valve as the foot-operated faucet. Protective dust covers on nozzles auto-remove on activation. The foot-operated wash function remains fully independent from the eye-wash activation — the two systems share plumbing but do not interfere with each other.
Six Precision Engineering Features of Every Metrolabs Foot-Operated Cleanroom Sink
Every Metrolabs foot-operated cleanroom sink is built to these standards — making it a structural component of the facility hygiene programme, not a plumbing fixture placed inside a controlled environment:
SS 316L Construction — Surgical-Grade Throughout
The entire unit — bowl, counter, splashback, faucet body, pedal plate, kick-bar housing, soap dispenser body, plumbing shroud, and wall bracket — is SS 316L throughout. No SS 304 in wet contact zones, no chrome-plated fittings, no plastic in the sink body or faucet housing. SS 316L is mandatory in the cleanroom sink environment because the combination of chloride-containing disinfectants, organic acid soap residues, and constant hot/cold temperature cycling is aggressively corrosive to SS 304. The molybdenum addition in SS 316L provides the pitting corrosion resistance required. Post-fabrication: IPA degreased and ASTM A967 citric acid passivated. Mill test certificate and passivation certificate supplied for IQ documentation at delivery.
Heavy-Duty Spring-Loaded Kick-Pedal — Long-Life Mechanical Actuator
The foot pedal is fabricated from heavy-gauge SS 316L with a textured non-slip surface and a return spring rated for a minimum 200,000 actuation cycles before service — equivalent to approximately 3 years of 200 uses per day at full-production throughput. The pedal connects to the faucet valve via a stainless cable-and-pulley system — no plastic linkages, no rubber bellows, no components that can absorb disinfectant residues or degrade under VHP exposure. The pedal-to-valve cable runs entirely within the SS 316L plumbing shroud — no exposed cable on the sink exterior. The pedal return spring is accessible for replacement through the shroud service panel without removing the sink unit or disturbing any plumbing connection.
Fully Concealed Plumbing — SS 316L Shroud with Service Access
All hot and cold supply pipes, the TMV, drain pipe, S-trap, isolation valves, and pedal cable are housed within a close-fitting SS 316L shroud covering the entire under-sink space from bowl base to floor. The shroud exterior is smooth, continuous, and wipeable — no exposed pipes collecting dust and scale, no brackets creating particle traps. Service access is via one or two removable panels operated by a quarter-turn fastener — no tools required, full plumbing access without disturbing the sink unit. The pedal mechanism is also accessible through the same service panel, allowing spring replacement or cable adjustment during planned maintenance without downtime to the sink unit. No adhesive, silicone, or foam is exposed on the shroud exterior — all edges are SS-to-SS mechanical joins.
Thermostatic Mixing Valve — Consistent Scrub Temperature
The thermostatic mixing valve blends hot and cold water to the specified mixed temperature — typically 38–40°C for handwash, 40–42°C for surgical scrub — regardless of incoming supply pressure variations. At foot-operated sinks, pressure-balance is particularly important because users tend to use full pedal deflection — full flow — rather than the partial flow that a hand-operated faucet naturally delivers at partial turn. At full flow, an unbalanced mixed supply is more prone to temperature variation. The pressure-balanced TMV maintains the set temperature across the full pedal deflection range — from minimum actuation to full pedal deflection. Anti-scald failsafe closes the valve if cold supply fails. TMV housed entirely within the concealed shroud — accessible for calibration via the service panel.
Acoustic Damping — Non-Shedding Bowl Treatment
Foot-operated sinks tend to be used at higher flow rates than sensor faucets — because the user naturally applies full pedal pressure rather than a metered partial flow. Higher flow rates produce more significant water impact noise in the bowl. Metrolabs treats the underside of every sink bowl with non-shedding closed-cell acoustic damping pads — bitumen-free acoustic compound specified to be non-shedding (zero particle contribution), non-outgassing (no VOC release), and moisture-resistant. The damping compound is applied at fabrication as a bonded layer — not loose pads or tape — and does not delaminate under the thermal cycling or vibration loads of the sink environment. Acoustic testing confirms a minimum 10 dB reduction in impact noise transmission through the bowl and supporting structure even at full flow rates.
VHP Compatible — No Electronics to Protect
Because the foot-operated system contains no electronic components — no sensors, no solenoids, no battery compartments, no PCBs — it is inherently VHP-compatible without any special sealing or protection requirement. The SS 316L exterior surfaces, EPDM and PTFE internal plumbing seals, and stainless cable-and-pulley pedal mechanism all maintain integrity through 500+ VHP cycles at 1000 ppm. Metrolabs recommends specifying the foot-operated system as the primary or supplementary wash point in any room with a regular VHP decontamination programme — eliminating the need to protect or temporarily de-commission electronic faucet sensors during the VHP cycle. The foot-operated sink can remain fully functional and operational during room VHP cycles without any modification or protection procedure.
Metrolabs Foot-Operated Cleanroom Sink — Technical Standards
Every Metrolabs foot-operated cleanroom sink is fabricated, finished, and documented to these technical parameters:
| Feature | Metrolabs Standard | Benefit |
|---|---|---|
| Material | SS 316L — all wet contact surfaces | Chloride-resistant — biofilm-inhibiting EP finish |
| Actuator✓ Std | SS kick-plate pedal — spring-loaded | 200,000+ cycles — no power dependency |
| Bowl Construction | Deep-drawn single-piece — R10 coved | No internal joints — no biofilm anchor points |
| Faucet Type | High-arc gooseneck — non-aerated | Full forearm access — no aerosol generation |
| Temperature Control | Thermostatic mixing — 38–42°C | Consistent SOP temperature — anti-scald failsafe |
| Marine Edge | Integral raised perimeter — all sides | No floor spillage — contained on counter |
| Plumbing | Fully concealed — SS 316L shroud | No exposed pipes — no dust accumulation |
| Acoustic Damping | Non-shedding closed-cell pads — bowl underside | 10dB impact noise reduction — zero particle shedding |
Foot-Operated Sink Units Across Every Regulated Sector
Mechanical, power-free, hands-free wash stations for every cleanroom sector where aseptic hygiene and operational reliability are non-negotiable:
Pharmaceutical GMP
SS 316L foot-operated sink units in Grade B/C gowning anterooms. Zero electronics — no power dependency, no sensor calibration. Thermostatic mixing at SOP-compliant temperature. Inherently VHP-compatible for room-wide decontamination cycles.
Aseptic Manufacturing
Deep surgical scrub configuration for Grade A/B aseptic suite gowning. Sustained-hold pedal for 5-minute scrub protocols. High-arc gooseneck faucet for full forearm scrub access. Non-aerated laminar flow — no aerosol generation at entry corridor.
Hospital & OT
Pre-operative scrub sinks in OT gowning and CSSD — the most common application for foot-operated faucet control in the healthcare sector. Multi-station trough foot-pedal for surgical team scrubbing. Eye-wash integration for chemical handling. NABH compliant.
Biotech & ATMP
SS 316L foot-operated sinks in ATMP and gene therapy GMP suites — preferred over IR sensors in VHP-cycle environments. No electronic components to protect or de-commission during biocide or VHP cycles. Mechanical reliability for critical access points.
Research Laboratories
Foot-operated handwash sinks in NABL-accredited labs where hands-free operation is required but IR sensor power supply and maintenance is not preferred. Water-conservation valve calibration for labs with restricted PW or mains supply.
BSL Containment
SS 316L foot-operated sinks in BSL-2 and BSL-3 gowning — foot-operated specification is standard in many BSL-3 facility designs. No electronics to be damaged by biocide exposure or formaldehyde decontamination. Eye-wash integration standard for containment labs.
Electronics Cleanrooms
Foot-operated sink units for semiconductor and electronics cleanrooms — mechanical actuation avoids the ESD risk associated with sensor-power supply connections. Anti-static earthing bond on faucet body and pedal plate for ESD-sensitive environments.
Food & Beverage
FSSAI high-care food production handwash stations — foot-operated faucets are a hygienic standard in food processing lines. Non-aerated faucets reduce aerosol in food contact areas. Marine-edge prevents cleanroom floor slip hazard from high-frequency wash use.
Mechanical Precision — Where the Entire Hygiene Station Is Cleanroom-Compatible
Metrolabs ensures that the entire foot-operated sink unit — actuator, plumbing, bowl, and ancillaries — is a complete, sealed, documented utility infrastructure designed for the cleanroom environment:
Custom Dimensions — Exact Bay and Pedal Position
Metrolabs fabricates sink units to the exact bay width and mounting height of the installation position — custom bowl widths from 350mm to 1200mm, counter depths from 400mm to 600mm, and heights matched to the panel dado rail. The kick-pedal position is also custom-set — calibrated to the floor-to-sink-base dimension so the pedal sits at the correct ergonomic angle for the installed counter height. Bespoke dimensions ensure the splashback sits flush with the panel and the pedal engages naturally at the installed floor level.
Flow Rate Calibration — Water Conservation and Effective Wash
For facilities with water-conservation targets or restricted water supply, Metrolabs can calibrate the internal valve to deliver a precise flow rate at full pedal deflection — providing enough pressure for effective hand and forearm cleaning while limiting maximum consumption per wash. The calibrated valve maintains the set flow rate regardless of supply pressure variation — the wash output per pedal actuation is predictable, documentable, and consistent across all uses for inclusion in the facility water management records.
Material Test Certificates at Delivery
Every Metrolabs foot-operated cleanroom sink is supplied with an SS 316L mill test certificate (MTC) and ASTM A967 passivation certificate, plus the thermostatic valve compliance certificate — a complete documentation suite for inclusion in the facility IQ documentation at handover. The pedal mechanism cycle-rating certificate and spring specification are also included for maintenance planning documentation.
Recessed Soap Dispenser — Elbow or Foot-Operated
Optional recessed SS 316L soap and sanitiser dispensers factory-installed in the splashback — elbow-operated or foot-operated pedal. Recessed installation keeps the dispenser face flush with the splashback — no protruding body accumulating dust or soap residue on a horizontal ledge, and no freestanding bottle on the counter. Matching the soap dispenser activation type to the faucet — both foot-operated — creates a fully consistent hands-free hygiene station where no surface contact is required at any point in the wash cycle.
Foot-Operated Sink vs IR Sensor vs Standard Laboratory Sink
From Plumbing Survey to Installed & IQ-Documented Foot-Operated Cleanroom Sink
Metrolabs manages the complete supply and installation process — from plumbing survey through fabrication, pedal calibration, installation, and IQ documentation:
Plumbing Survey & Design
Hot and cold supply routes, drainage positions, wall panel frame, floor level, and soap dispenser positions confirmed. Bowl dimensions, pedal position (floor-to-base calibration), mounting (wall-hung/floor), splashback height, TMV specification, and flow rate calibration target specified. Dimensioned drawing produced and signed off.
Precision Fabrication
Bowl deep-drawn from SS 316L — R10 coved. Counter and splashback TIG welded. Marine edge formed. Kick-pedal assembly fabricated and cable-pulley system installed. Plumbing shroud fabricated. Acoustic damping applied. High-arc gooseneck and TMV factory-installed. Flow calibrated. Electropolishing and ASTM A967 passivation. MTCs issued.
Installation & Commissioning
Sink mounted at specified height. Splashback sealed to panel — pharmaceutical-grade silicone. Hot and cold supplies connected — push-fit or compression fittings. S-trap drain connected. TMV calibrated to target temperature. Pedal return force and cable tension set. Flow rate at full pedal deflection verified. Soap dispenser fitted and tested.
Documentation & IQ
Dimensions, MTCs, passivation cert, TMV calibration record, pedal cycle-rating cert, flow rate verification record, installation photos, sealant record, and plumbing test records compiled as IQ documentation for GMP facility validation submission. Pedal spring spec and replacement schedule included for maintenance planning.
Foot-Operated Sink Units Compliant with Every Major GMP & Safety Standard
WHO & EU GMP
WHO GMP and EU Annex 1 require hands-free cleanroom handwash facilities. Foot-operated faucet systems satisfy all WHO GMP and EU Annex 1 hands-free handwash requirements across pharmaceutical manufacturing grades B through D — with no power supply dependency for compliance maintenance.
WHO GMP · EU Annex 1ISO 14644-4
ISO 14644-4 requires cleanroom utility equipment compatible with cleaning and decontamination methods. SS 316L, concealed plumbing, and inherent VHP compatibility satisfy ISO 14644-4 utility equipment requirements. Wall-hung mounting with floor clearance supports floor cleaning access requirements for utility-point positions.
ISO 14644-4ANSI Z358.1 — Eye-Wash
Where eye-wash integration is specified, Metrolabs designs to ANSI Z358.1 — tepid water (16–35°C), within 10 seconds travel, minimum 15-minute flush duration, and self-stay activation. All ANSI Z358.1 requirements are integral design features. The foot-operated wash and eye-wash functions are independent — both share plumbing without cross-interference.
ANSI Z358.1 · OSHANABH & 21 CFR
NABH hospital accreditation requires hands-free sink facilities in OT and pharmacy — foot-operated is the NABH-preferred specification in OT gowning. ASTM A967 passivation and material test certificates satisfy US-FDA 21 CFR pharmaceutical equipment construction documentation requirements for facility qualification submissions.
NABH · ASTM A967 · 21 CFRFactory & Office
